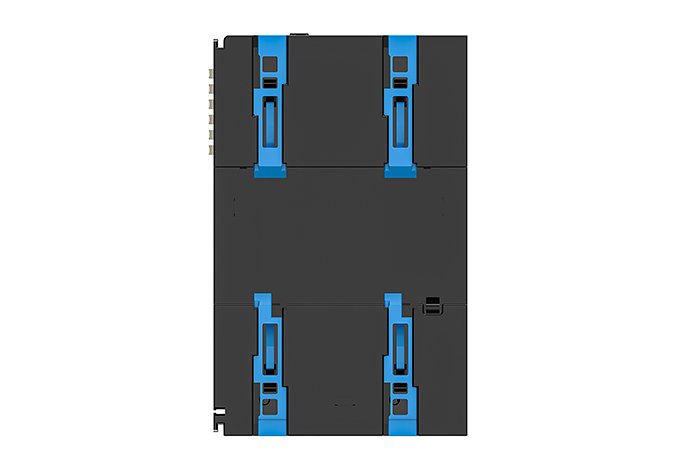

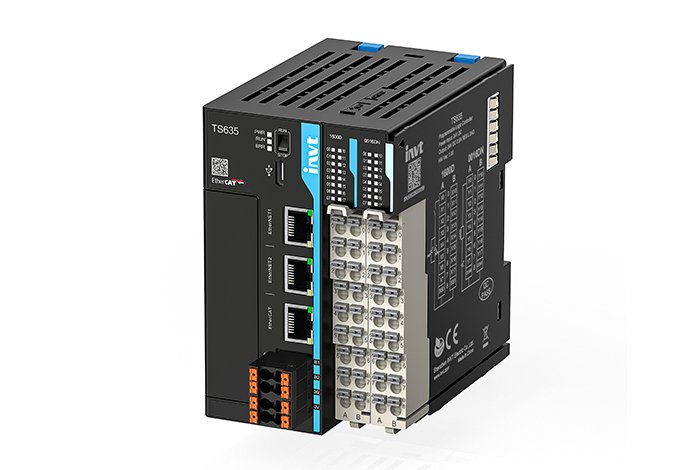

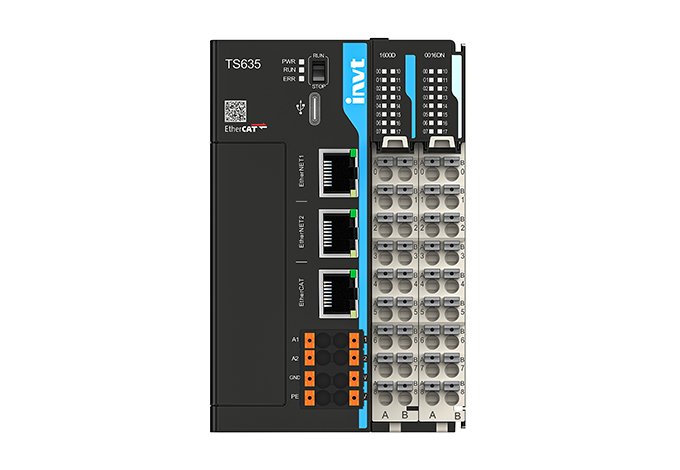

INVT TS600 Series Intelligent PLC
INVT TS600 series intelligent PLC integrates high-performance embedded technology and adopts a high-speed bus system architecture. It combines four types of automation control—sequential, process, information, and motion—within a unified system. Real-time control and complex calculations are achieved through highly reliable hardware and software systems. The PLC also offers open communication interfaces, IoT networking, and a distributed modular architecture. With fully self-developed programming software and customizable services, programming becomes flexible and user-friendly.
When combined with INVT’s VFDs, servos, HMIs, and IoT products, the TS600 enables one-stop automation solutions that create value for customers and position INVT as a trusted partner.
Description
1. High performance
– Efficient operation with a 1GHz main frequency, and compiler-based instructions with bit operation speeds up to 0.01μs.
2. Powerful motion control
– High-speed motion control for complex processes.
– Supports 4/8-axis pulse control and EtherCAT motion control, achieving 16-axis synchronization within 1ms and expandable to 32-axis synchronization within 2ms.
3. Easy connectivity
– Multi-protocol support for interconnectivity.
– Dual Ethernet ports for easy cascading and internal/external network isolation.
4. Easy programming
– Complies with IEC 61131 standards, supporting LD, SFC, IL, and C languages, with a unified set of motion control instructions compatible with both pulse axes and bus axes.
– Supports graphical drag-and-drop configuration, convenient parameter setting, automatic address allocation, and Trace tracking function.
5. Flexible expansion
– CPU equipped with 8/16 digital inputs and 8/16 digital outputs as standard, compatible with Flex series I/O modules, supporting various expansion cards and up to 72 EtherCAT slave stations.
6. Cloud collaboration
– Supports VPN remote upload/download, 4G/Wi-Fi/RJ45 transmission methods, and cloud-edge collaboration via MQTT, API, and other protocols.
