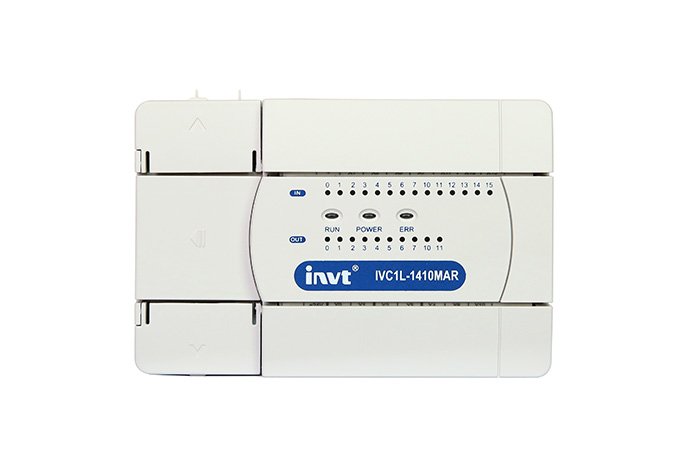

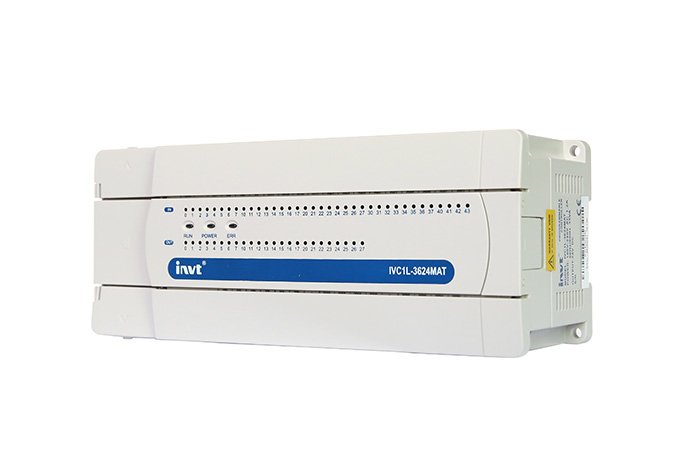

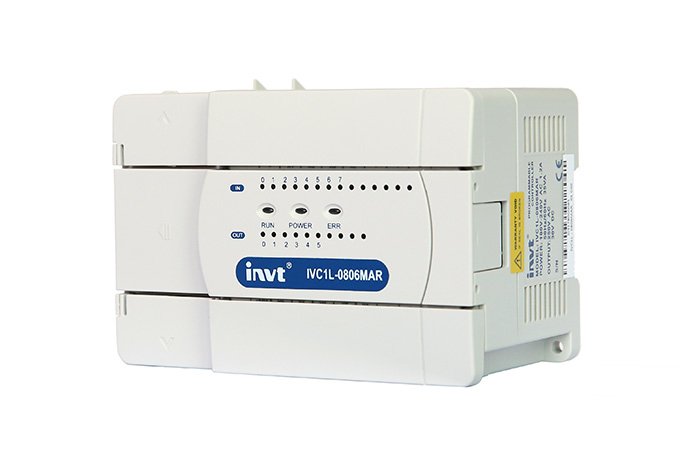

IVC1L Series Compact Cost-effective PLC
Description
1. Comprehensive functions
– Two channels of 50K + four channels of 10K high-speed inputs, three channels of 100K high-speed outputs (transistor type), supporting real-time clock and built-in battery.
2. Versatile communication
– Equipped with one RS232 and two RS485 ports as standard, supporting MODBUS master/slave, programming port protocol, N:N master/slave, and free port protocol.
3. Flexible configuration
– Maximum of 60 I/O points on the main unit, supporting connection of up to 7 expansion modules, with a maximum expandable I/O capacity of 128 points.
4. Outstanding performance
– 16K-step program capacity, up to 8000 D-type data registers, FLASH memory for permanent storage, and basic instruction execution speed of 0.2μs.
5. Cost optimization
– A wide range of models available, including AC-powered, DC-powered, relay output, and transistor output types, fully meeting various point requirements in different application scenarios.
6. Safe and reliable
– CE and RoHS certified.
