IVC1L Series Compact Cost-effective PLC

Product Overview

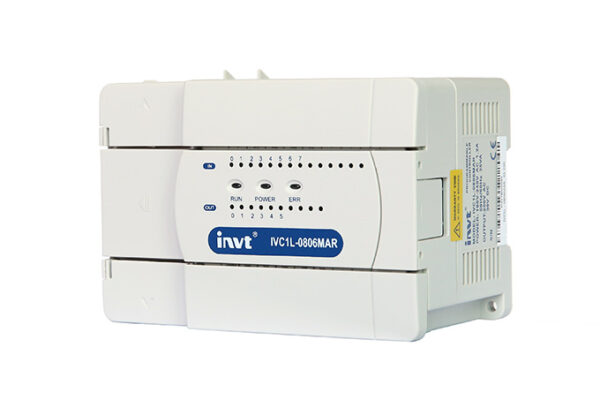

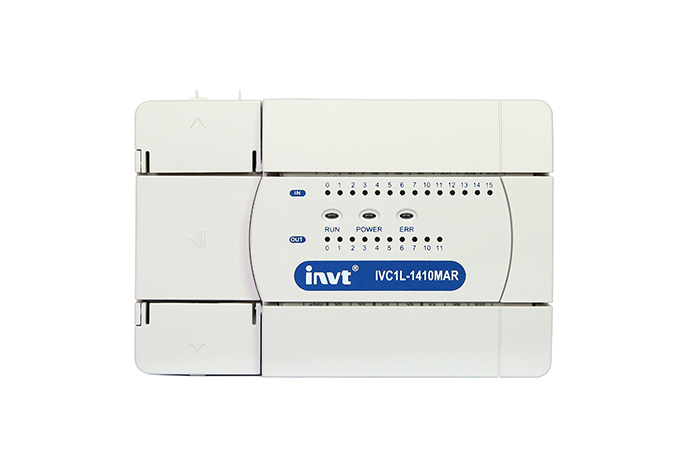

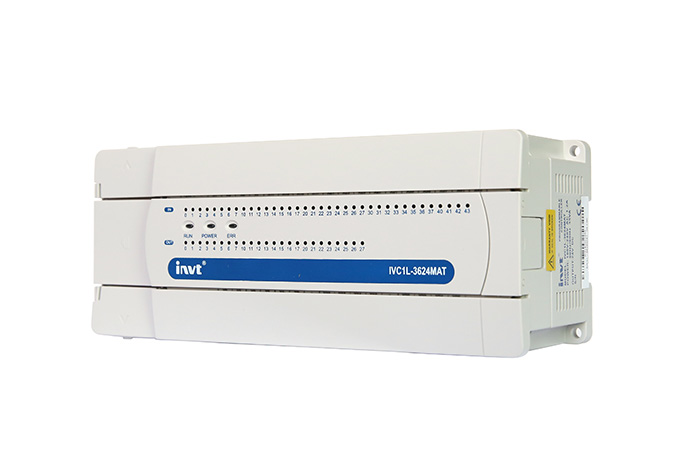

INVT IVC1L Series Compact Cost-effective PLC

INVT IVC1L is a compact universal programmable logic controller featuring a space-saving design, multiple model options, complete functionality and flexible I/O configuration.

Comprehensive Functions

• Two channels of 50K high-speed input
• Four channels of 10K high-speed input
• Three channels of 100K high-speed output on transistor models
• Real-time clock support
• Built-in battery support

Communication

• One RS232 port as standard
• Two RS485 ports as standard
• MODBUS master/slave support
• Programming-port protocol
• N:N master/slave communication
• Free-port protocol support

Flexible Configuration

• Up to 60 I/O points on the main unit
• Supports up to seven expansion modules
• Maximum expandable I/O capacity up to 128 points

Performance

• 16K-step program capacity
• Up to 8000 D-type data registers
• FLASH memory for permanent storage
• Basic instruction execution speed down to approximately 0.2 microseconds

Multiple Hardware Options

Different IVC1L models are available with AC or DC power options and relay or transistor output configurations, allowing selection based on different machine-control requirements.

Compliance

• CE certified
• RoHS certified

Typical Applications

• Textile machinery
• Hoisting equipment
• Building-material machinery
• Food-packaging equipment
• General machine automation
