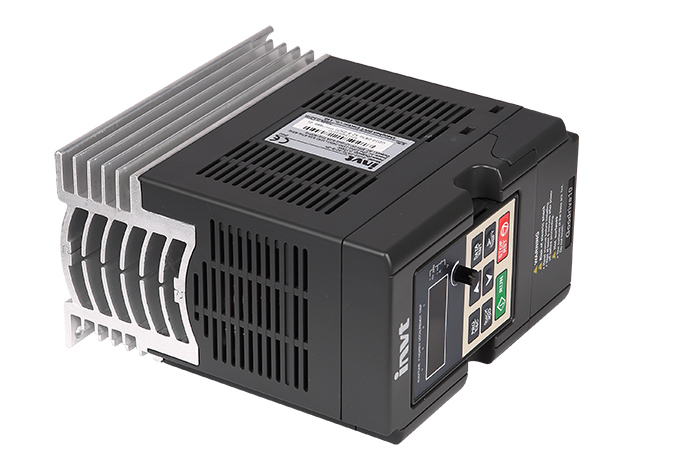

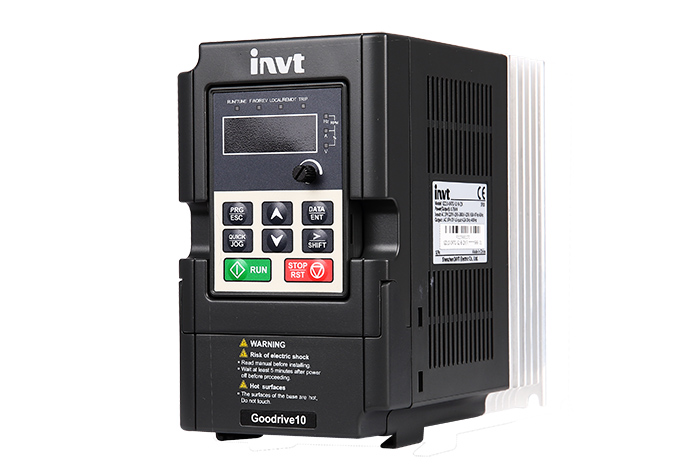

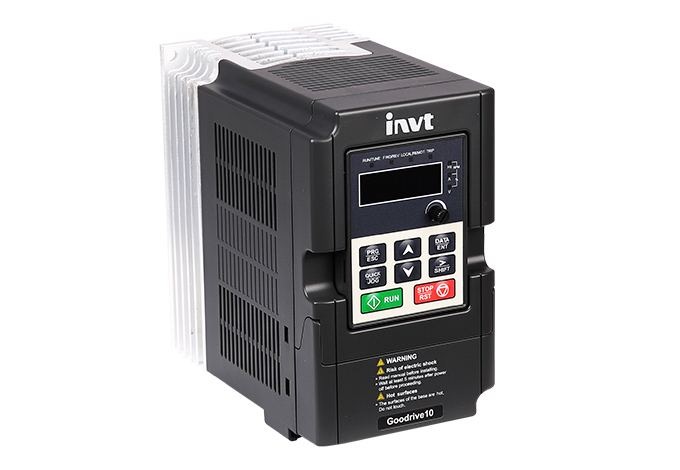

INVT GD10 Series VFD
INVT GD10 Series – Mini Economic Variable Frequency Drive.
Designed for small industrial applications requiring compact and reliable motor speed control.
make this code perfect any ,miss tage so tell me
Description
INVT GD10 Series Mini Economic Variable Frequency Drive
The INVT GD10 Series Variable Frequency Drive (VFD) is a compact and economical AC drive developed for low-power OEM applications. It combines SVPWM motor control, built-in PID, multistage-speed operation, DC braking and Modbus communication in a small enclosure that helps reduce panel space.
The GD10 is suitable for packing, food-processing, textile, centrifugal, carving and wire-cutting machinery. Its compact design is approximately 15% smaller than comparable products, making it useful for machines where installation space is limited.
As an Authorised INVT Diamond Partner, Integrated Control Solutions supplies genuine INVT GD10 drives across India with model-selection support, programming assistance, commissioning guidance, repair support and fast delivery.
INVT GD10 Key Features
- SVPWM motor-control technology.
- Compact design requiring less installation space.
- Built-in PID function.
- 16-step speed control.
- DC braking function.
- Modbus communication.
- Standard potentiometer and external LED keypad support.
- Optional C3 and C2 filters.
- Natural cooling on selected 0.2–0.75 kW 220 V models.
- CE certification support.
INVT GD10 Technical Specifications
| Brand | INVT |
|---|---|
| Series | GD10 |
| Product Type | Mini Economic Variable Frequency Drive |
| Motor Power | 0.2 kW to 2.2 kW across the listed models |
| Input Voltage Options | Single-phase 220 V, three-phase 220 V and three-phase 380 V |
| Control Method | SVPWM |
| Functions | PID, multistage speed, DC braking and Modbus communication |
| User Interface | Standard potentiometer and external LED keypad support |
| Warranty | 1 year |
| Typical Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
Why Buy INVT GD10 From ICS India?
- Authorised INVT Diamond Partner
- Genuine INVT products
- Technical model-selection assistance
- Pan India supply
- Programming and commissioning support
- Industrial VFD repair assistance
- Fast quotation and delivery support
Explore more INVT AC Drives or request an INVT GD10 quotation.
INVT GD10 Models and Dimensions
The following table lists all GD10 model numbers, supply-voltage options, motor power and physical dimensions. Confirm all final electrical ratings, mounting dimensions and ordering codes in the official INVT catalogue or manual before ordering.
| Supply Voltage | Model | Motor Power | W1 | W2 | H1 | H2 | Depth | Model Details |
|---|---|---|---|---|---|---|---|---|
| Single-phase 220V | GD10-0R2G-S2-B | 0.2 kW | 85 mm | 75 mm | 140 mm | 132 mm | 134.2 mm | View details |
| Single-phase 220V | GD10-0R4G-S2-B | 0.4 kW | 85 mm | 75 mm | 140 mm | 132 mm | 134.2 mm | View details |
| Single-phase 220V | GD10-0R7G-S2-B | 0.75 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
| Single-phase 220V | GD10-1R5G-S2-B | 1.5 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
| Single-phase 220V | GD10-2R2G-S2-B | 2.2 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
| Three-phase 220V | GD10-0R2G-2-B | 0.2 kW | 85 mm | 75 mm | 140 mm | 132 mm | 134.2 mm | View details |
| Three-phase 220V | GD10-0R4G-2-B | 0.4 kW | 85 mm | 75 mm | 140 mm | 132 mm | 134.2 mm | View details |
| Three-phase 220V | GD10-0R7G-2-B | 0.75 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
| Three-phase 220V | GD10-1R5G-2-B | 1.5 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
| Three-phase 220V | GD10-2R2G-2-B | 2.2 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
| Three-phase 380V | GD10-0R7G-4-B | 0.75 kW | 100 mm | 89 mm | 165 mm | 154 mm | 153.2 mm | View details |
INVT GD10 Model Details
Scroll horizontally to compare all GD10 models, supply voltages, motor power and dimensions.
INVT GD10-0R2G-S2-B Mini VFD (0.2 kW)
| Model | GD10-0R2G-S2-B |
|---|---|
| Search Alias | GD10-0R2G-S2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Single-phase 220V |
| Motor Power | 0.2 kW |
| W1 | 85 mm |
| W2 | 75 mm |
| H1 | 140 mm |
| H2 | 132 mm |
| Depth | 134.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-0R4G-S2-B Mini VFD (0.4 kW)
| Model | GD10-0R4G-S2-B |
|---|---|
| Search Alias | GD10-0R4G-S2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Single-phase 220V |
| Motor Power | 0.4 kW |
| W1 | 85 mm |
| W2 | 75 mm |
| H1 | 140 mm |
| H2 | 132 mm |
| Depth | 134.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-0R7G-S2-B Mini VFD (0.75 kW)
| Model | GD10-0R7G-S2-B |
|---|---|
| Search Alias | GD10-0R7G-S2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Single-phase 220V |
| Motor Power | 0.75 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-1R5G-S2-B Mini VFD (1.5 kW)
| Model | GD10-1R5G-S2-B |
|---|---|
| Search Alias | GD10-1R5G-S2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Single-phase 220V |
| Motor Power | 1.5 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-2R2G-S2-B Mini VFD (2.2 kW)
| Model | GD10-2R2G-S2-B |
|---|---|
| Search Alias | GD10-2R2G-S2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Single-phase 220V |
| Motor Power | 2.2 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-0R2G-2-B Mini VFD (0.2 kW)
| Model | GD10-0R2G-2-B |
|---|---|
| Search Alias | GD10-0R2G-2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Three-phase 220V |
| Motor Power | 0.2 kW |
| W1 | 85 mm |
| W2 | 75 mm |
| H1 | 140 mm |
| H2 | 132 mm |
| Depth | 134.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-0R4G-2-B Mini VFD (0.4 kW)
| Model | GD10-0R4G-2-B |
|---|---|
| Search Alias | GD10-0R4G-2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Three-phase 220V |
| Motor Power | 0.4 kW |
| W1 | 85 mm |
| W2 | 75 mm |
| H1 | 140 mm |
| H2 | 132 mm |
| Depth | 134.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-0R7G-2-B Mini VFD (0.75 kW)
| Model | GD10-0R7G-2-B |
|---|---|
| Search Alias | GD10-0R7G-2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Three-phase 220V |
| Motor Power | 0.75 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-1R5G-2-B Mini VFD (1.5 kW)
| Model | GD10-1R5G-2-B |
|---|---|
| Search Alias | GD10-1R5G-2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Three-phase 220V |
| Motor Power | 1.5 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-2R2G-2-B Mini VFD (2.2 kW)
| Model | GD10-2R2G-2-B |
|---|---|
| Search Alias | GD10-2R2G-2 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Three-phase 220V |
| Motor Power | 2.2 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
INVT GD10-0R7G-4-B Mini VFD (0.75 kW)
| Model | GD10-0R7G-4-B |
|---|---|
| Search Alias | GD10-0R7G-4 |
| Series | INVT GD10 |
| Brand | INVT |
| Product Type | Mini Economic Variable Frequency Drive |
| Supply Voltage | Three-phase 380V |
| Motor Power | 0.75 kW |
| W1 | 100 mm |
| W2 | 89 mm |
| H1 | 165 mm |
| H2 | 154 mm |
| Depth | 153.2 mm |
| Control | SVPWM control |
| Functions | PID, 16-step speed, DC braking and Modbus communication |
| Applications | Packing, food, textile, centrifugal, carving and wire-cutting machinery |
Selection notice: Confirm motor rated current, input phase, supply voltage, load type, cooling, installation space and official technical specifications before ordering.
INVT GD10 Applications
- Packing machinery
- Food-processing equipment
- Textile machinery
- Centrifugal machinery
- Carving machines
- Wire-cutting machines
- Small conveyors
- Compact OEM automation systems
INVT GD10 Manual, Catalogue and Datasheet
Download the official INVT GD10 catalogue and installation manual using the buttons at the top of this product page. The documentation includes model selection, dimensions, wiring, PID settings, multistage-speed parameters, DC braking, Modbus communication, commissioning and troubleshooting.
The documentation applies to models including GD10-0R2G-S2-B, GD10-0R7G-S2-B, GD10-2R2G-2-B, GD10-0R7G-4-B and the other GD10 models listed on this page.
Frequently Asked Questions About INVT GD10 VFD
Find answers about GD10 voltage options, compact design, PID, Modbus, dimensions, manuals, model selection and quotation support.
What is the INVT GD10 Series VFD?
The INVT GD10 is a compact mini economical variable frequency drive designed for low-power OEM machinery and general-purpose motor-control applications.
What is the GD10 power range?
The listed GD10 models cover 0.2 kW to 2.2 kW, depending on the voltage and phase configuration.
Which voltage options are available?
The listed range includes single-phase 220 V, three-phase 220 V and a three-phase 380 V model.
Does the GD10 support PID control?
Yes. The GD10 includes built-in PID control for suitable process-control applications.
Does the GD10 support multistage speed control?
Yes. It supports 16-step speed control.
Does the GD10 support DC braking?
Yes. DC braking is available for suitable motor-control applications.
Does the GD10 support Modbus communication?
Yes. Modbus communication is supported.
How compact is the GD10?
The GD10 is designed to be approximately 15% smaller than comparable products, helping reduce panel and installation space.
Does GD10 use natural cooling?
Selected 0.2–0.75 kW single-phase and three-phase 220 V models use natural cooling.
Does the GD10 have a built-in potentiometer?
Yes. The GD10 includes a standard potentiometer and supports an external LED keypad.
Are EMC filters available?
Optional C3 and C2 filters are available for suitable configurations.
What is the GD10-0R7G-S2-B model?
The GD10-0R7G-S2-B is a 0.75 kW single-phase 220 V model with listed dimensions of 100 × 165 × 153.2 mm.
What is the GD10-2R2G-2-B model?
The GD10-2R2G-2-B is a 2.2 kW three-phase 220 V model with listed dimensions of 100 × 165 × 153.2 mm.
Which applications use the INVT GD10?
Typical applications include packing, food-processing, textile, centrifugal, carving and wire-cutting machinery.
Where can I download the GD10 manual?
Use the Product Manual button at the top of the page for wiring, parameters, commissioning and troubleshooting information.
Where can I download the GD10 catalogue?
Use the Product Brochure button at the top of the page for model selection, dimensions and technical specifications.
How do I select the correct GD10 model?
Selection should consider motor power, rated current, input phase, supply voltage, load type, cooling and installation dimensions.
Does ICS India provide GD10 technical support?
Integrated Control Solutions provides product-selection and technical assistance. Programming and commissioning support depends on the application and project scope.
How can I request a GD10 quotation?
Send the exact model number, motor rating, supply voltage, quantity, application and delivery location to the ICS India sales team.
Need Help Selecting the Correct GD10 Model?
Share your motor power, rated current, supply voltage, input phase, application and required quantity with the ICS India technical team.
