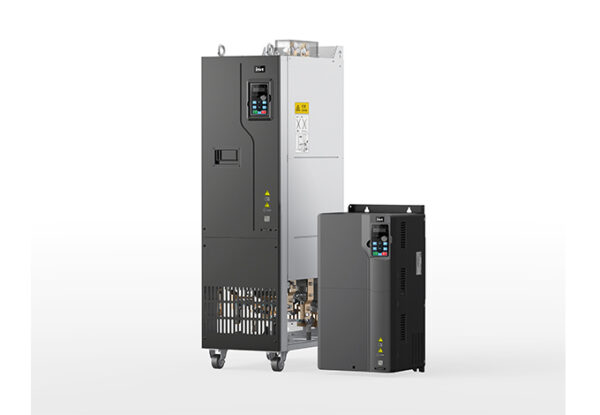

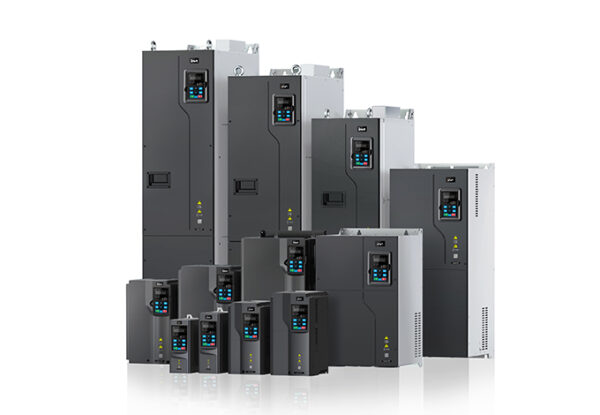

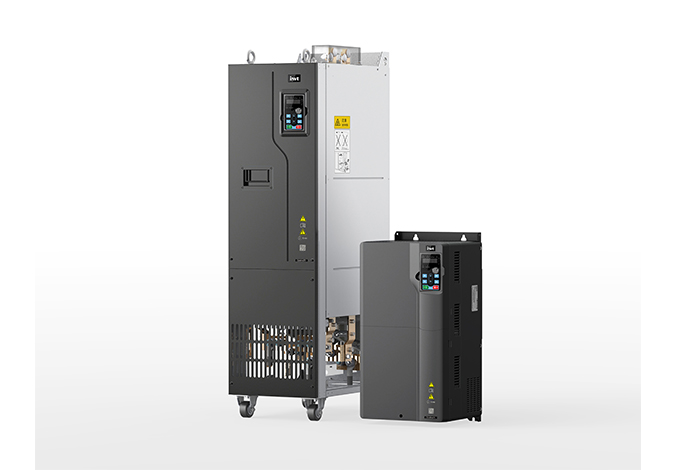

INVT GD270 Series VFD
INVT GD270 VFD is a high-performance variable frequency drive designed specifically for fan and pump applications. It features advanced vector control technology, built-in energy-saving functions, and reliable motor control for HVAC systems, municipal water supply, wastewater treatment, and industrial automation.
Description
GD270 is a new member of INVT’s Goodrive series. It comes with built-in functions tailored for fan and pump applications, and adopts advanced vector control algorithms and energy-saving technologies. It can effortlessly drive loads such as fans and pumps, making it ideal for wastewater treatment, municipal water supply/heating, HVAC, and other industries.
High efficiency and energy saving
Equipped with a newly developed ECO energy-saving control algorithm to ensure optimal performance and minimum loss at low dynamic loads, optimizing output power.
Supports permanent magnet synchronous motors (PMSM), enhancing system efficiency and reducing operating costs.
Ease of use
Built-in dedicated functions for fans, pumps, and HVAC, enabling plug-and-play operation and significantly improving commissioning efficiency.
Supports desludging and multi-pump control, effectively reducing routine maintenance workload and simplifying the control system, thus lowering costs.
Reliable and stable
Wide voltage design of 380–480V, effectively handling grid fluctuations and improving grid adaptability.
Complies with 3C3 and 3S3 protection levels, significantly enhancing reliability in harsh environments.
Flexible configuration
Optional built-in DC reactor and output AC reactor, meeting harmonic requirements for different scenarios.
Supports mainstream industrial bus expansions (Profibus-DP, Profinet, CANopen, Ethernet/IP, Modbus-TCP), allowing on-demand configuration.
| VFD Model | Output Power (kW) | Input Current (A) | Output Current (A) |
|---|---|---|---|
| GD270-1R5-4(-C2)(-EU) | 1.5 | 5 | 3.7 |
| GD270-2R2-4(-C2)(-EU) | 2.2 | 6 | 5 |
| GD270-004-4(-C2)(-EU) | 4 | 15 | 9.5 |
| GD270-5R5-4(-C2)(-EU) | 5.5 | 20 | 13 |
| GD270-7R5-4(-C2)(-EU) | 7.5 | 27 | 17 |
| GD270-011-4(-L1/-C2)(-EU) | 11 | 35 (35) | 25 |
| GD270-015-4(-L1/-C2)(-EU) | 15 | 44 (44) | 32 |
| GD270-018-4(-L1/-C2)(-EU) | 18.5 | 46 (46) | 38 |
| GD270-022-4(-L1/-C2)(-EU) | 22 | 54 (54) | 45 |
| GD270-030-4(-L1)(-C3)(-EU) | 30 | 75 (56) | 60 |
| GD270-037-4(-L1)(-C3)(-EU) | 37 | 90 (69) | 75 |
| GD270-045-4(-L1)(-C3)(-EU) | 45 | 108 (101) | 92 |
| GD270-055-4(-L1)(-C3)(-EU) | 55 | 142 (117) | 115 |
| GD270-075-4(-L1)(-C3)(-EU) | 75 | 177 (149) | 150 |
| GD270-090-4(-L1)(-C3)(-EU) | 90 | 200 (171) | 180 |
| GD270-110-4(-L1)(-C3)(-EU) | 110 | 240 (205) | 215 |
| GD270-132-4(-L1)(-C3)(-EU) | 132 | 278 (235) | 250 |
| GD270-160-4(-L1)(-EU) | 160 | 310 (296) | 305 |
| GD270-185-4(-L1)(-EU) | 185 | 335 (320) | 330 |
| GD270-200-4(-L1)(-EU) | 200 | 385 (368) | 380 |
| GD270-220-4(-Ln)(-EU) | 220 | 430 (411) | 425 |
| GD270-250-4(-Ln)(-EU) | 250 | 465 (444) | 460 |
| GD270-280-4(-Ln)(-EU) | 280 | 540 (485) | 530 |
| GD270-315-4(-Ln)(-EU) | 315 | 605 (550) | 600 |
| GD270-355-4(-Ln)(-EU) | 355 | 655 (600) | 650 |
| GD270-400-4-Ln(-EU) | 400 | 660 | 720 |
| GD270-450-4-Ln(-EU) | 450 | 745 | 820 |
