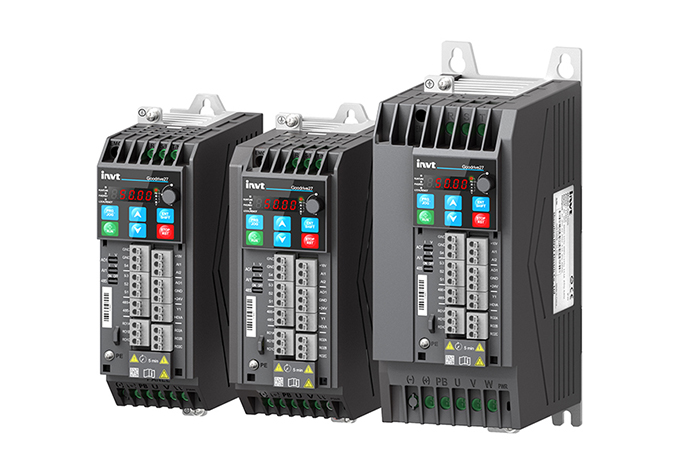

INVT GD27 Series Smart VFD
INVT GD200A VFD is a high-performance variable frequency drive designed for industrial automation applications. Suitable for pumps, compressors, conveyors and AC drive systems.
Description
GD27 is a newly designed smart VFD in a compact structure with excellent performance and rich functions, simple and easy to use. It can be widely used in industries such as woodworking, textiles, food, printing and packaging, plastics, HVAC, logistics and transportation equipment.
Power range:
- AC 1PH 200V–240V 0.4kW–2.2kW
- AC 3PH 200V–240V 0.4kW–15kW
- AC 3PH 380V–480V 0.75kW–22kW
| Supply Voltage | VFD Model | Output Power (kW) | Input Current (A) | Output Current (A) | Frame |
|---|---|---|---|---|---|
| AC 1PH 200V~240V | |||||
| 1PH 200-240V | GD27-0R4G-S2-B-XX | 0.4 | 6.5 | 2.5 | A |
| 1PH 200-240V | GD27-0R7G-S2-B-XX | 0.75 | 11 | 4.2 | A |
| 1PH 200-240V | GD27-1R5G-S2-B-XX | 1.5 | 18 | 7.5 | B |
| 1PH 200-240V | GD27-2R2G-S2-B-XX | 2.2 | 24.3 | 10 | B |
| AC 3PH 200V~240V | |||||
| 3PH 200-240V | GD27-0R4G-2-B-EU | 0.4 | 6.5 | 2.5 | A |
| 3PH 200-240V | GD27-0R7G-2-B-EU | 0.75 | 11 | 4.2 | A |
| 3PH 200-240V | GD27-1R5G-2-B-EU | 1.5 | 18 | 7.5 | B |
| 3PH 200-240V | GD27-2R2G-2-B-EU | 2.2 | 24.3 | 10 | B |
| 3PH 200-240V | GD27-004G-2-B-EU | 4 | 16 | 16 | C |
| 3PH 200-240V | GD27-5R5G-2-B-EU | 5.5 | 20 | 20 | C |
| 3PH 200-240V | GD27-7R5G-2-B-EU | 7.5 | 30 | 30 | D |
| 3PH 200-240V | GD27-011G-2-B-EU | 11 | 42 | 42 | D |
| 3PH 200-240V | GD27-015G-2-B-EU | 15 | 55 | 60 | E |
| AC 3PH 380V~480V | |||||
| 3PH 380-480V | GD27-0R7G-4-B-XX | 0.75 | 4.5 | 2.5 | A |
| 3PH 380-480V | GD27-1R5G-4-B-XX | 1.5 | 6.5 | 3.7 | A |
| 3PH 380-480V | GD27-2R2G-4-B-XX | 2.2 | 8.8 | 5.5 | B |
| 3PH 380-480V | GD27-003G-4-B-XX | 3 | 12.2 | 7.5 | B |
| 3PH 380-480V | GD27-004G-4-B-XX | 4 | 15.6 | 9.5 | B |
| 3PH 380-480V | GD27-5R5G-4-B-XX | 5.5 | 22.3 | 14 | C |
| 3PH 380-480V | GD27-7R5G-4-B-XX | 7.5 | 28.7 | 18.5 | C |
| 3PH 380-480V | GD27-011G-4-B-XX | 11 | 36 | 25 | D |
| 3PH 380-480V | GD27-015G-4-B-XX | 15 | 46 | 32 | D |
| 3PH 380-480V | GD27-018G-4-B-XX | 18.5 | 57 | 38 | E |
| 3PH 380-480V | GD27-022G-4-B-XX | 22 | 62 | 45 | E |
