GD20 is designed for compact industrial applications requiring reliable motor speed control.

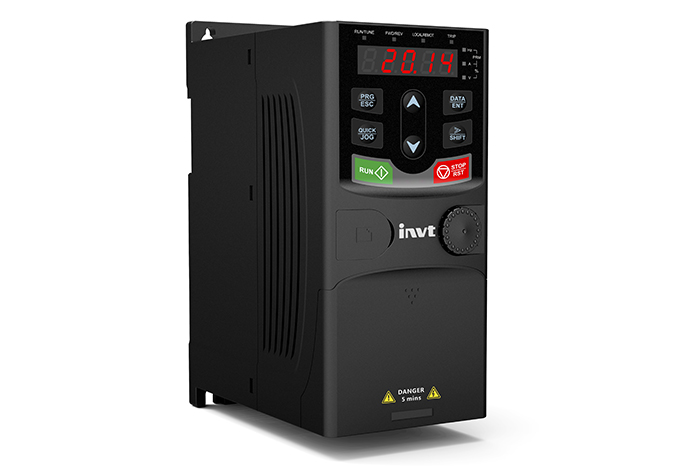

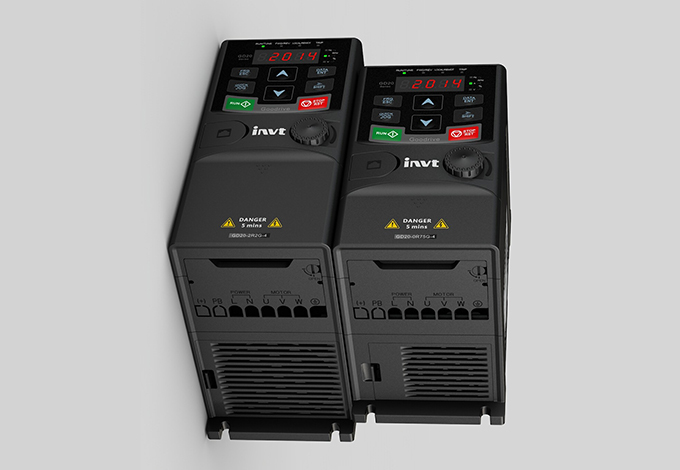

The INVT GD20 Series Variable Frequency Drive (VFD) is a compact, high-performance AC drive designed for precise motor-speed control and reliable industrial automation. Its sensorless vector-control technology improves motor performance while its enriched hardware and software functions support a wide range of machinery and process applications.
The GD20 Series is widely used in printing and packaging machinery, textile equipment, treadmills, plastic-processing machines, conveyors, pumps and fans. The range includes low-power compact models as well as higher-power models up to 110 kW.
As an Authorised INVT Diamond Partner, Integrated Control Solutions supplies genuine INVT GD20 drives across India with model-selection support, programming assistance, commissioning guidance, repair support and fast delivery.
Explore more INVT AC Drives or request an INVT GD20 quotation.
| Brand | INVT |
|---|---|
| Series | GD20 |
| Product Type | Mini Vector Control Variable Frequency Drive |
| Power Range | 0.4 kW to 110 kW across the listed models |
| Voltage Classes | 1PH 220 V, 3PH 220 V and 3PH 380 V |
| Input Frequency | 50–60 Hz |
| Control Method | Sensorless vector control and V/F control |
| Warranty | 1 year |
| Typical Applications | Printing, packaging, textiles, treadmills, plastics, conveyors, pumps and fans |
Use the table to identify a suitable model. Final selection should be confirmed against motor current, voltage, duty, overload, braking and installation conditions.
| Model | kW | HP | Voltage | Current | Details |
|---|---|---|---|---|---|
| GD20-0R4G-S2 | 0.4 | 1PH 220V | 2.5 A | View Price & Details | |
| GD20-0R7G-S2 | 0.75 | 1PH 220V | 4.2 A | View Price & Details | |
| GD20-1R5G-S2 | 1.5 | 1PH 220V | 7.5 A | View Price & Details | |
| GD20-2R2G-S2 | 2.2 | 1PH 220V | 10 A | View Price & Details | |
| GD20-0R4G-2 | 0.4 | 3PH 220V | 2.5 A | View Price & Details | |
| GD20-0R7G-2 | 0.75 | 3PH 220V | 4.2 A | View Price & Details | |
| GD20-1R5G-2 | 1.5 | 3PH 220V | 7.5 A | View Price & Details | |
| GD20-2R2G-2 | 2.2 | 3PH 220V | 10 A | View Price & Details | |
| GD20-004G-2 | 4 | 3PH 220V | 16 A | View Price & Details | |
| GD20-5R5G-2 | 5.5 | 3PH 220V | 20 A | View Price & Details | |
| GD20-7R5G-2 | 7.5 | 3PH 220V | 30 A | View Price & Details | |
| GD20-0R7G-4 | 0.75 | 3PH 380V | 2.5 A | View Price & Details | |
| GD20-1R5G-4 | 1.5 | 3PH 380V | 4.2 A | View Price & Details | |
| GD20-2R2G-4 | 2.2 | 3PH 380V | 5.5 A | View Price & Details | |
| GD20-004G-4 | 4 | 3PH 380V | 9.5 A | View Price & Details | |
| GD20-5R5G-4 | 5.5 | 3PH 380V | 14 A | View Price & Details | |
| GD20-7R5G-4 | 7.5 | 3PH 380V | 18.5 A | View Price & Details | |
| GD20-011G-4 | 11 | 3PH 380V | 25 A | View Price & Details | |
| GD20-015G-4 | 15 | 3PH 380V | 32 A | View Price & Details | |
| GD20-018G-4 | 18.5 | 3PH 380V | 38 A | View Price & Details | |
| GD20-022G-4 | 22 | 3PH 380V | 45 A | View Price & Details | |
| GD20-030G-4 | 30 | 3PH 380V | 60 A | View Price & Details | |
| GD20-037G-4 | 37 | 3PH 380V | 75 A | View Price & Details | |
| GD20-045G-4 | 45 | 3PH 380V | 92 A | View Price & Details | |
| GD20-055G-4 | 55 | 3PH 380V | 115 A | View Price & Details | |
| GD20-075G-4 | 75 | 3PH 380V | 150 A | View Price & Details | |
| GD20-090G-4 | 90 | 3PH 380V | 180 A | View Price & Details | |
| GD20-110G-4 | 110 | 3PH 380V | 215 A | View Price & Details |
The INVT GD20 is a compact mini vector-control variable frequency drive designed for reliable industrial motor control.
Mini Vector Control Variable Frequency Drive
Printing, packaging, textiles, treadmills, plastics, conveyors, pumps and fans

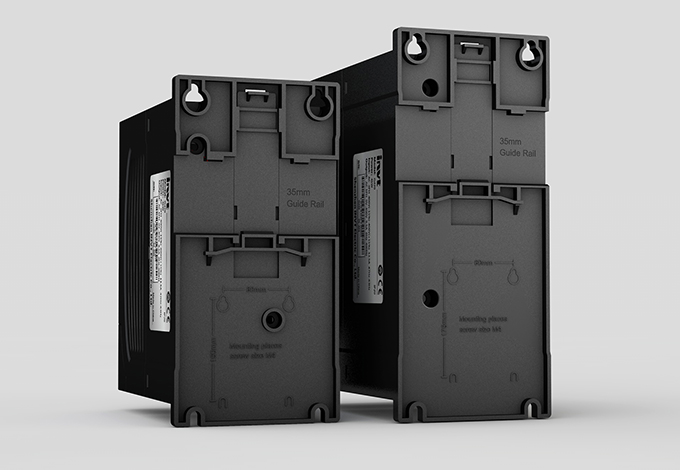

Sensorless vector-control technology.; Stable motor-speed and torque performance.; Compact design for industrial panels and OEM machinery.; Independent air-duct design across the range.; Built-in DC reactor on described 18.5–110 kW models.; Standard built-in brake unit on described 18.5–37 kW models.; Optional built-in brake unit on described 45–110 kW models.; Reliable hardware configuration and flexible software functions.
Confirm motor rated current, voltage class, load type, braking requirements, installation conditions and official technical specifications before ordering.
Selection should consider motor power, rated current, voltage class, load type, overload requirements, braking and installation conditions.
