DA200 High Performance Servo Drives

Product Overview

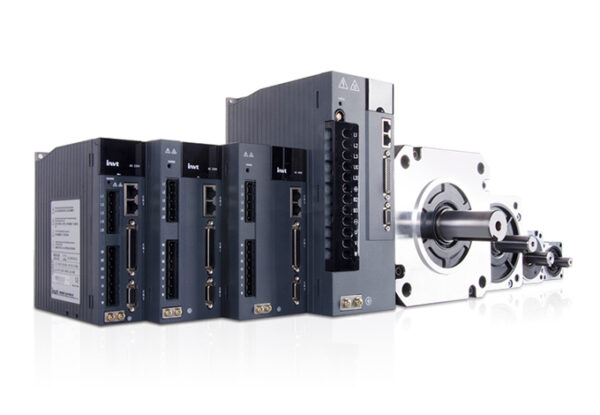

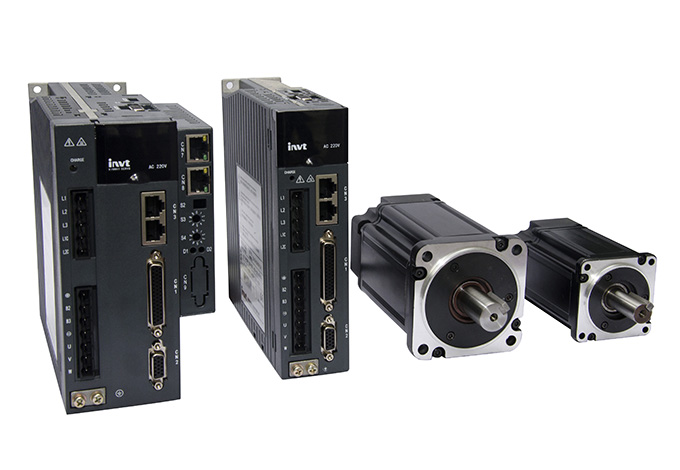

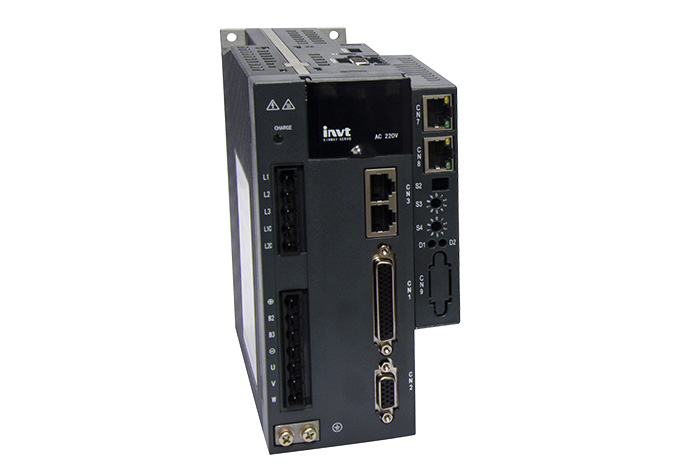

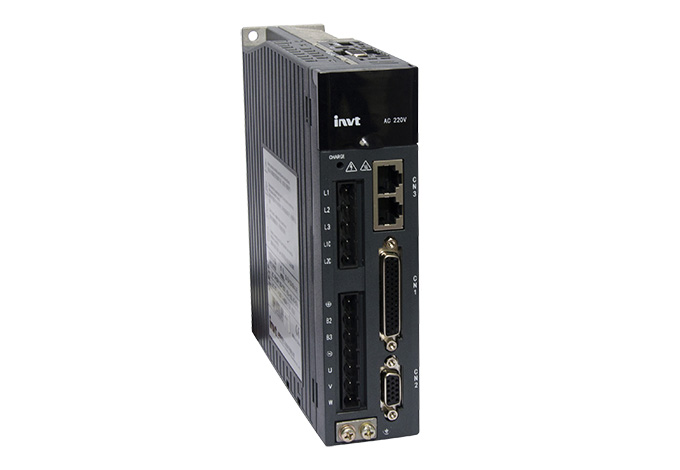

INVT DA200 High Performance Servo Drive

INVT DA200 is a high-performance servo platform developed for demanding industrial motion-control applications requiring fast response, precise positioning and advanced control functionality.

Superior Performance

• Speed-response frequency up to 2.0kHz
• Improved machine processing speed
• Reduced adjustment time
• Supports 23-bit high-resolution encoder
• High positioning accuracy
• Power coverage from approximately 0.1kW to 55kW

Full Closed-Loop Control

DA200 supports external encoder or grating-scale feedback for full closed-loop control. This helps reduce the influence of mechanical transmission backlash and improves terminal positioning accuracy.

Internal Position Control

The drive supports internal multi-position control through terminal-command combinations or communication control, allowing some simple motion-control applications to reduce dependence on an external PLC motion-control unit.

Electronic Cam

Electronic cam functionality supports complex master-slave applications such as flying shear and tracking applications.

Communication

• Modbus
• CANopen
• PROFINET
• EtherCAT
• Multi-axis high-speed synchronous control

Intelligent Functions

• Online inertia identification
• Offline inertia identification
• Automatic notch filter
• Manual notch filter
• Low-frequency vibration suppression
• Gantry synchronization
• Disturbance suppression
• Friction torque compensation
• Automatic gain adjustment
• Gain switching
• Speed observer

Typical Applications

• CNC machinery
• Packaging machines
• Printing equipment
• Electronic cam applications
• Flying shear systems
• Gantry machines
• Robotics
• Precision automation
