INVT IMS20B
IMS20B Series General-purpose AC Servo Motor
INVT IMS20B Series general-purpose AC servo motor covers frame sizes from 40mm to 263mm and power ratings from approximately 0.05kW to 75kW, with multiple inertia configurations, encoder options and IP67 protection.
Product Overview

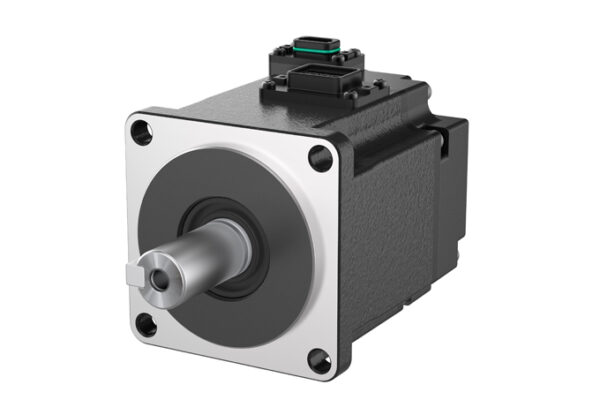

INVT IMS20B Series General-purpose AC Servo Motor
IMS20B Series is a new generation of general-purpose AC servo motors from INVT designed for fast and precise position, speed and torque-control applications.
Power and Frame Range
- Frame sizes approximately 40mm to 263mm
- Power range approximately 0.05kW to 75kW
- High, medium and low inertia configurations
Encoder Options
- 17-bit multi-turn absolute magnetic encoders
- 23-bit multi-turn absolute optical encoders
- Resolver encoder options
Compact Construction
Optimized mechanical and manufacturing design can reduce motor length compared with earlier-generation products, helping reduce machine installation space.
Safety and Reliability
- UL certification across supported series
- CE certification
- IP67 protection rating
Performance
- Maximum speed up to approximately 7000 r/min on selected smaller frame sizes
- High overload capability on selected frame sizes
- Optimized electromagnetic structure
- Reduced temperature rise
Energy Efficiency
Different motor frame classes are designed to meet applicable high-efficiency requirements depending on model and rating.
Typical Applications
- Advanced manufacturing
- Printing and packaging
- Machine tools
- Plastic machinery
- Textile machines
- Industrial automation
- Precision positioning
Frequently Asked Questions
What is the IMS20B?
IMS20B Series General-purpose AC Servo Motor is an INVT industrial servo product designed for precision motion-control applications.
Where is the IMS20B commonly used?
Typical applications include industrial automation, machinery, positioning systems and other motion-control applications depending on the selected model.
Can ICS India help select the correct IMS20B model?
Yes. Share the motor rating, supply voltage, encoder requirement, communication protocol, machine type and motion-control requirement with the ICS India technical team.
How can I request a quotation for IMS20B?
Use the Request Quote or WhatsApp option on this product page and share your required model, quantity and application details.
