INVT GD300-01A Series Air Compressor Drives
GD300-01A series VFD for air compressor is applicable to both synchronous and asynchronous air compressors, providing superior control performance. Featuring dedicated compressor control logic, it can directly interface with various signals including emergency stop, pressure, temperature, fan sensors, and fault signals. This is a universal, split-type VFD series for air compressors, covering the full power range.
Power range:
AC 3PH 220V(-15%)–240V(+10%): 7.5–185kW
AC 3PH 380V(-15%)–440V(+10%): 7.5–500kW
Description
INVT GD300-01A Series Air Compressor Variable Frequency Drive
The INVT GD300-01A Series Variable Frequency Drive is a dedicated drive for air-compressor systems. It supports both synchronous and asynchronous compressor motors and provides specialized compressor-control logic for stable, efficient and reliable operation.
The GD300-01A can directly interface with emergency-stop, pressure, temperature, fan, sensor and fault signals. Its universal split-type design makes it suitable for screw compressors, rotary compressors, compressor-control panels and industrial compressed-air systems.
As an Authorised INVT Diamond Partner, Integrated Control Solutions supplies genuine INVT GD300-01A drives across India with model-selection support, programming assistance, commissioning guidance, repair support and fast delivery.
INVT GD300-01A Key Features
- Dedicated control logic for air-compressor systems.
- Supports synchronous and asynchronous compressor motors.
- Direct emergency-stop signal interface.
- Pressure and temperature signal inputs.
- Fan, sensor and fault-signal connectivity.
- Universal split-type compressor-drive design.
- Wide power range for industrial compressor systems.
- Stable motor control and energy-efficient operation.
INVT GD300-01A Power Range
- AC 3PH 220–240 V: 7.5–185 kW
- AC 3PH 380–440 V: 7.5–500 kW

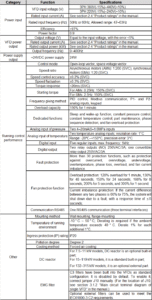

INVT GD300-01A Technical Specifications
| Brand | INVT |
|---|---|
| Series | GD300-01A |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Motor Compatibility | Synchronous and asynchronous compressor motors |
| Voltage Classes | Three-phase 220–240 V and three-phase 380–440 V |
| Series Power Range | 7.5 kW to 500 kW, depending on voltage class |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Typical Applications | Screw compressors, rotary compressors and industrial compressed-air systems |
Why Buy INVT GD300-01A From ICS India?
- Authorised INVT Diamond Partner
- Genuine INVT products
- Technical compressor-drive model selection
- Pan India supply
- Programming and commissioning assistance
- Industrial VFD repair support
- Fast quotation and delivery assistance
Explore more INVT AC Drives or request an INVT GD300-01A quotation.
INVT GD300-01A Models, Power and Current Ratings
The following table lists the supplied GD300-01A three-phase 380–440 V models, output power, input current and output current. Confirm final electrical ratings and ordering codes in the official INVT catalogue or manual before ordering.
| Product Model | Output Power | Input Current | Output Current | Model Details |
|---|---|---|---|---|
| GD300-01A-7R5G-4 | 7.5 kW | 25 A | 18.5 A | View details |
| GD300-01A-011G-4 | 11 kW | 32 A | 25 A | View details |
| GD300-01A-015G-4 | 15 kW | 32 A | 32 A | View details |
| GD300-01A-018G-4 | 18.5 kW | 37 A | 38 A | View details |
| GD300-01A-022G-4 | 22 kW | 44 A | 45 A | View details |
| GD300-01A-030G-4 | 30 kW | 58 A | 60 A | View details |
| GD300-01A-037G-4 | 37 kW | 72 A | 75 A | View details |
| GD300-01A-045G-4 | 45 kW | 87 A | 92 A | View details |
| GD300-01A-055G-4 | 55 kW | 106 A | 115 A | View details |
| GD300-01A-075G-4 | 75 kW | 140 A | 150 A | View details |
| GD300-01A-090G-4 | 90 kW | 170 A | 180 A | View details |
| GD300-01A-110G-4 | 110 kW | 202 A | 215 A | View details |
| GD300-01A-132G-4 | 132 kW | 265 A | 260 A | View details |
| GD300-01A-160G-4 | 160 kW | 310 A | 305 A | View details |
| GD300-01A-185G-4 | 185 kW | 345 A | 340 A | View details |
| GD300-01A-200G-4 | 200 kW | 385 A | 380 A | View details |
INVT GD300-01A Model Details
Scroll horizontally to compare all supplied GD300-01A air-compressor drive models, power ratings and current values.
INVT GD300-01A-7R5G-4 Air Compressor VFD (7.5 kW)
| Model | GD300-01A-7R5G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 7.5 kW |
| Input Current | 25 A |
| Output Current | 18.5 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-011G-4 Air Compressor VFD (11 kW)
| Model | GD300-01A-011G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 11 kW |
| Input Current | 32 A |
| Output Current | 25 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-015G-4 Air Compressor VFD (15 kW)
| Model | GD300-01A-015G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 15 kW |
| Input Current | 32 A |
| Output Current | 32 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-018G-4 Air Compressor VFD (18.5 kW)
| Model | GD300-01A-018G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 18.5 kW |
| Input Current | 37 A |
| Output Current | 38 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-022G-4 Air Compressor VFD (22 kW)
| Model | GD300-01A-022G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 22 kW |
| Input Current | 44 A |
| Output Current | 45 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-030G-4 Air Compressor VFD (30 kW)
| Model | GD300-01A-030G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 30 kW |
| Input Current | 58 A |
| Output Current | 60 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-037G-4 Air Compressor VFD (37 kW)
| Model | GD300-01A-037G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 37 kW |
| Input Current | 72 A |
| Output Current | 75 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-045G-4 Air Compressor VFD (45 kW)
| Model | GD300-01A-045G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 45 kW |
| Input Current | 87 A |
| Output Current | 92 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-055G-4 Air Compressor VFD (55 kW)
| Model | GD300-01A-055G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 55 kW |
| Input Current | 106 A |
| Output Current | 115 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-075G-4 Air Compressor VFD (75 kW)
| Model | GD300-01A-075G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 75 kW |
| Input Current | 140 A |
| Output Current | 150 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-090G-4 Air Compressor VFD (90 kW)
| Model | GD300-01A-090G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 90 kW |
| Input Current | 170 A |
| Output Current | 180 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-110G-4 Air Compressor VFD (110 kW)
| Model | GD300-01A-110G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 110 kW |
| Input Current | 202 A |
| Output Current | 215 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-132G-4 Air Compressor VFD (132 kW)
| Model | GD300-01A-132G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 132 kW |
| Input Current | 265 A |
| Output Current | 260 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-160G-4 Air Compressor VFD (160 kW)
| Model | GD300-01A-160G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 160 kW |
| Input Current | 310 A |
| Output Current | 305 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-185G-4 Air Compressor VFD (185 kW)
| Model | GD300-01A-185G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 185 kW |
| Input Current | 345 A |
| Output Current | 340 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
INVT GD300-01A-200G-4 Air Compressor VFD (200 kW)
| Model | GD300-01A-200G-4 |
|---|---|
| Series | INVT GD300-01A |
| Brand | INVT |
| Product Type | Dedicated Air Compressor Variable Frequency Drive |
| Voltage Class | Three Phase 380–440 V AC |
| Output Power | 200 kW |
| Input Current | 385 A |
| Output Current | 380 A |
| Motor Compatibility | Synchronous and asynchronous air-compressor motors |
| Signal Interfaces | Emergency stop, pressure, temperature, fan, sensor and fault signals |
| Applications | Screw compressors, rotary compressors, process-air systems and industrial compressor panels |
Selection notice: Confirm motor rated current, compressor type, supply voltage, signal requirements, cooling, duty cycle and official specifications before ordering.
INVT GD300-01A Applications
- Screw air compressors
- Rotary air compressors
- Synchronous compressor motors
- Asynchronous compressor motors
- Industrial compressed-air systems
- Compressor retrofit projects
- Process-air equipment
- Compressor-control panels
INVT GD300-01A Manual, Catalogue and Datasheet
Download the official INVT GD300-01A catalogue and installation manual using the buttons at the top of this product page. The documentation includes model selection, electrical ratings, compressor signal interfaces, wiring, parameters, commissioning and troubleshooting.
The documentation applies to models including GD300-01A-022G-4, GD300-01A-075G-4, GD300-01A-160G-4, GD300-01A-200G-4 and the other listed GD300-01A models.
Frequently Asked Questions About INVT GD300-01A Air Compressor VFD
Find answers about compressor compatibility, control signals, power ranges, manuals, model selection and quotations.
What is the INVT GD300-01A Series VFD?
The INVT GD300-01A is a dedicated air-compressor variable frequency drive designed for synchronous and asynchronous compressor motors.
Which air compressors are compatible with GD300-01A?
The GD300-01A can be used with compatible synchronous and asynchronous screw or rotary air-compressor systems when correctly selected and commissioned.
What is the GD300-01A power range?
The stated series range is 7.5–185 kW for three-phase 220–240 V systems and 7.5–500 kW for three-phase 380–440 V systems.
Which models are listed on this page?
This page lists 16 three-phase 380–440 V models from 7.5 kW to 200 kW.
What is the GD300-01A-022G-4 model?
The GD300-01A-022G-4 is a 22 kW model with a listed input current of 44 A and output current of 45 A.
What is the GD300-01A-075G-4 model?
The GD300-01A-075G-4 is a 75 kW model with a listed input current of 140 A and output current of 150 A.
Can the GD300-01A connect to emergency-stop signals?
Yes. The dedicated compressor-control logic can interface with emergency-stop signals.
Can it connect to pressure and temperature sensors?
Yes. The drive can interface with pressure, temperature, fan and fault signals used in compressor systems.
Does the GD300-01A support synchronous motors?
Yes. It is designed for compatible synchronous as well as asynchronous air-compressor motors.
What does split-type VFD mean?
A split-type compressor VFD is designed to integrate with external compressor controls and field signals rather than combining every function into one enclosure.
Can GD300-01A improve compressor efficiency?
Yes. Variable-speed operation can reduce energy use by matching compressor speed to air demand when the complete system is correctly designed and configured.
Where can I download the GD300-01A manual?
Use the Product Manual button at the top of the page for wiring, compressor-control logic, signal connections, parameters and troubleshooting.
Where can I download the GD300-01A catalogue?
Use the Product Brochure button at the top of the page for model selection, current ratings and technical specifications.
How do I select the correct GD300-01A model?
Selection should consider motor power, rated current, voltage, compressor type, control signals, pressure range, cooling and operating duty.
Does ICS India provide GD300-01A technical support?
Integrated Control Solutions provides product-selection and technical assistance. Programming and commissioning support depends on the application and project scope.
How can I request a GD300-01A quotation?
Send the full model number, compressor motor data, supply voltage, control-signal requirements, quantity and delivery location to the ICS India sales team.
Need Help Selecting the Correct GD300-01A Model?
Share your compressor motor power, rated current, voltage, compressor type, control-signal requirements and quantity with the ICS India technical team.
