GD350-19 series VFD is a new generation of VFD that INVT develops for cranes by using advanced control technologies based on more than ten-year accumulative crane-industry experience. The VFD has integrated rich lifting industry delicated control functions and STO fucntions, and can be widely applied to various cranes in different fields such as ports, factories, construction sites, and mining, with excellent control performance, comprehensive safety protection functions, and flexible expansion

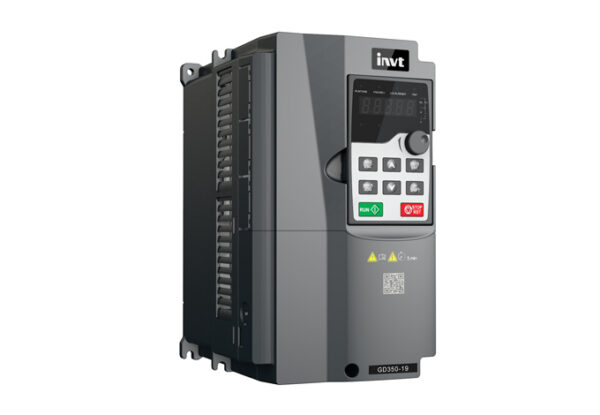

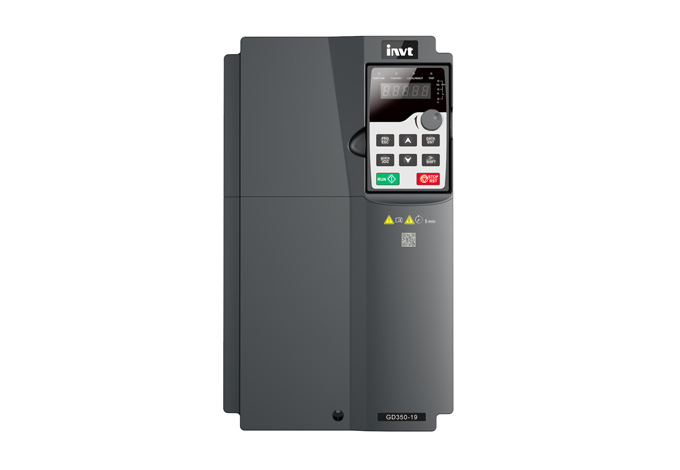

The INVT GD350-19 Series Variable Frequency Drive (VFD) is a new-generation special-purpose drive developed for crane, hoist and material-handling applications. It combines advanced motor-control technology with industrial experience to support reliable lifting, travelling and positioning performance.

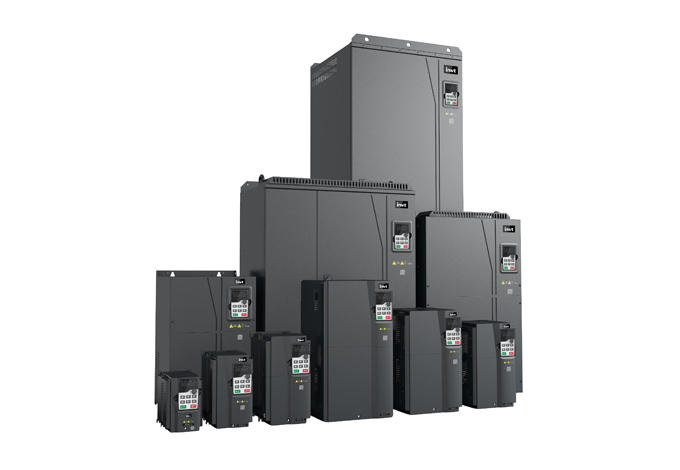

The GD350-19 is suitable for overhead cranes, gantry cranes, hoisting equipment, winches, lifting machinery and industrial material-handling systems. The available model range covers 1.5 kW to 500 kW for different crane-duty requirements.
As an Authorised INVT Diamond Partner, Integrated Control Solutions supplies genuine INVT GD350-19 crane drives across India with model-selection support, programming assistance, commissioning guidance, repair support and fast delivery.
Explore more INVT AC Drives or request an INVT GD350-19 quotation.
| Brand | INVT |
|---|---|
| Series | GD350-19 |
| Product Type | Special-Purpose Crane Variable Frequency Drive |
| Power Range | 1.5 kW to 500 kW across the listed models |
| Voltage Class | Three-phase 380–480 V AC |
| Typical Applications | Overhead cranes, hoists, gantry cranes, lifting machinery and material handling |
Use the table to identify a suitable model. Final selection should be confirmed against motor current, voltage, duty, overload, braking and installation conditions.
| Model | kW | HP | Voltage | Current | Details |
|---|---|---|---|---|---|
| GD350-19-1R5G-4-B | 1.5 | Three Phase 380–480 V AC | 3.7 A | View Price & Details | |
| GD350-19-2R2G-4-B | 2.2 | Three Phase 380–480 V AC | 5 A | View Price & Details | |
| GD350-19-004G-4-B | 4 | Three Phase 380–480 V AC | 9.5 A | View Price & Details | |
| GD350-19-5R5G-4-B | 5.5 | Three Phase 380–480 V AC | 14 A | View Price & Details | |
| GD350-19-7R5G-4-B | 7.5 | Three Phase 380–480 V AC | 18.5 A | View Price & Details | |
| GD350-19-011G-4-B | 11 | Three Phase 380–480 V AC | 25 A | View Price & Details | |
| GD350-19-015G-4-B | 15 | Three Phase 380–480 V AC | 32 A | View Price & Details | |
| GD350-19-018G-4-B | 18.5 | Three Phase 380–480 V AC | 38 A | View Price & Details | |
| GD350-19-022G-4-B | 22 | Three Phase 380–480 V AC | 45 A | View Price & Details | |
| GD350-19-030G-4-B | 30 | Three Phase 380–480 V AC | 60 A | View Price & Details | |
| GD350-19-037G-4-B | 37 | Three Phase 380–480 V AC | 75 A | View Price & Details | |
| GD350-19-045G-4-B | 45 | Three Phase 380–480 V AC | 92 A | View Price & Details | |
| GD350-19-055G-4-B | 55 | Three Phase 380–480 V AC | 115 A | View Price & Details | |
| GD350-19-075G-4-B | 75 | Three Phase 380–480 V AC | 150 A | View Price & Details | |
| GD350-19-090G-4-B | 90 | Three Phase 380–480 V AC | 180 A | View Price & Details | |
| GD350-19-110G-4-B | 110 | Three Phase 380–480 V AC | 215 A | View Price & Details | |
| GD350-19-132G-4 | 132 | Three Phase 380–480 V AC | 260 A | View Price & Details | |
| GD350-19-160G-4 | 160 | Three Phase 380–480 V AC | 305 A | View Price & Details | |
| GD350-19-185G-4 | 185 | Three Phase 380–480 V AC | 340 A | View Price & Details | |
| GD350-19-200G-4 | 200 | Three Phase 380–480 V AC | 380 A | View Price & Details | |
| GD350-19-220G-4 | 220 | Three Phase 380–480 V AC | 425 A | View Price & Details | |
| GD350-19-250G-4 | 250 | Three Phase 380–480 V AC | 480 A | View Price & Details | |
| GD350-19-280G-4 | 280 | Three Phase 380–480 V AC | 530 A | View Price & Details | |
| GD350-19-315G-4 | 315 | Three Phase 380–480 V AC | 600 A | View Price & Details | |
| GD350-19-355G-4 | 355 | Three Phase 380–480 V AC | 650 A | View Price & Details | |
| GD350-19-400G-4 | 400 | Three Phase 380–480 V AC | 720 A | View Price & Details | |
| GD350-19-450G-4 | 450 | Three Phase 380–480 V AC | 820 A | View Price & Details | |
| GD350-19-500G-4 | 500 | Three Phase 380–480 V AC | 860 A | View Price & Details |
The INVT GD350-19 is a special-purpose variable frequency drive developed for crane, hoist and material-handling applications.
Special-Purpose Crane Variable Frequency Drive
Overhead cranes, hoists, gantry cranes, lifting machinery and material handling
Special-purpose VFD for crane and hoist applications.; Reliable motor control for lifting and travelling mechanisms.; Wide model range from 1.5 kW to 500 kW.; Suitable for overhead cranes, gantry cranes and material-handling systems.; Supports demanding industrial lifting applications.; Designed for precise and stable crane operation.; Available in three-phase 380–480 V class models.; Authorised INVT Diamond Partner
Confirm motor rated current, crane duty, lifting speed, braking requirements, load profile and official technical specifications before ordering.
Selection should consider motor power, rated current, crane duty, load profile, braking requirements, lifting speed, control method and installation conditions.
