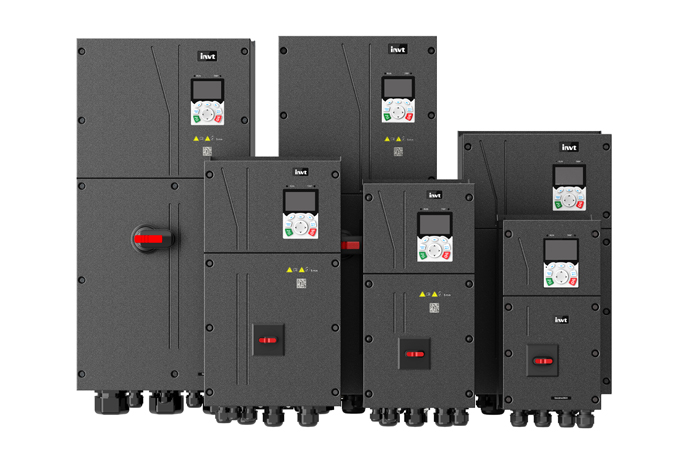

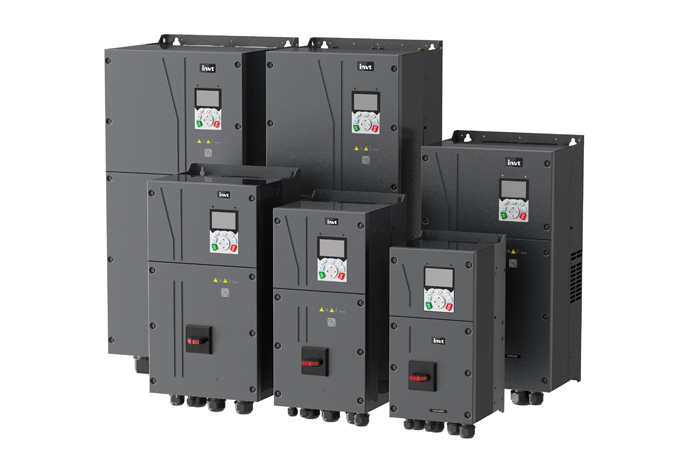

INVT GD350 Series IP55 High Performance Drive

Description

INVT GD350 IP55 Series – High Performance Variable Frequency Drive.

GD350 IP55 is a high-performance and multipurpose VFD. The IP55 protection rating provides the best protection experience for most hash outdoor applications. GD350 IP55 also incorporates features such as ease of use, excellent performance, high scalability and wide usage. At the same time, an integrated AC switch also provides convenience and security for machine control and debugging. It widely used in aquaculture farm, water treatment, fan, etc.

Key Features:

• High-performance vector control
• IP55 protection for harsh environments
• Stable torque control
• Energy-saving operation
• Advanced motor protection

Applications:

• Outdoor pump systems
• Industrial machinery
• Heavy-duty automation systems
• Process control applications
Feature :

* IP55 protection level
* AC switch for safe control
* Drive various motors
* Strong scalability: support to insert 3 extension cards at the same time.
* Isolated air duct
* Sectional cover design makes the wiring simple
* Widely used in aquaculture farm, water treatment, fan, etc.

Frame	VFD Model	Constant Torque				Variable Torque
Frame	VFD Model	Power (kW)	Input (A)	Output (A)	Carrier (kHz)	Power (kW)	Input (A)	Output (A)	Carrier (kHz)
Frame 1
1	GD350-004G/5R5P-45-AS	4	13.5	9.5	8	5.5	19.5	12.5	4
1	GD350-004G/5R5P-45-NS	4	13.5	9.5	8	5.5	19.5	12.5	4
1	GD350-5R5G/7R5P-45-AS	5.5	19.5	14	8	7.5	23	17	4
1	GD350-5R5G/7R5P-45-NS	5.5	19.5	14	8	7.5	23	17	4
Frame 2
2	GD350-7R5G/011P-45-AS	7.5	25	18.5	8	11	30	23	4
2	GD350-7R5G/011P-45-NS	7.5	25	18.5	8	11	30	23	4
2	GD350-011G/015P-45-AS	11	32	25	8	15	40	32	4
2	GD350-011G/015P-45-NS	11	32	25	8	15	40	32	4
2	GD350-015G/018P-45-AS	15	40	32	4	18.5	45	38	2
2	GD350-015G/018P-45-NS	15	40	32	4	18.5	45	38	2
Frame 3
3	GD350-018G/022P-45-AS	18.5	45	38	4	22	51	45	2
3	GD350-018G/022P-45-NS	18.5	45	38	4	22	51	45	2
3	GD350-022G/030P-45-AS	22	51	45	4	30	64	60	2
3	GD350-022G/030P-45-NS	22	51	45	4	30	64	60	2
Frame 4
4	GD350-030G/037P-45-AS	30	64	60	4	37	80	75	2
4	GD350-030G/037P-45-NS	30	64	60	4	37	80	75	2
4	GD350-037G/045P-45-AS	37	80	75	4	45	98	92	2
4	GD350-037G/045P-45-NS	37	80	75	4	45	98	92	2
Frame 5
5	GD350-045G/055P-45-AS	45	100	92	4	55	128	115	2
5	GD350-045G/055P-45-NS	45	100	92	4	55	128	115	2
5	GD350-045G/055P-45-AS-B	45	100	92	4	55	128	115	2
5	GD350-045G/055P-45-NS-B	45	100	92	4	55	128	115	2
5	GD350-055G/075P-45-AS	55	128	115	4	75	139	150	2
5	GD350-055G/075P-45-NS	55	128	115	4	75	139	150	2
5	GD350-055G/075P-45-AS-B	55	128	115	4	75	139	150	2
5	GD350-055G/075P-45-NS-B	55	128	115	4	75	139	150	2
Frame 6
6	GD350-075G/090P-45-AS	75	139	150	2	90	168	170	2
6	GD350-075G/090P-45-NS	75	139	150	2	90	168	170	2
6	GD350-075G/090P-45-AS-B	75	139	150	2	90	168	170	2
6	GD350-075G/090P-45-NS-B	75	139	150	2	90	168	170	2
6	GD350-090G/110P-45-AS	90	168	180	2	110	201	215	2
6	GD350-090G/110P-45-NS	90	168	180	2	110	201	215	2
6	GD350-090G/110P-45-AS-B	90	168	180	2	110	201	215	2
6	GD350-090G/110P-45-NS-B	90	168	180	2	110	201	215	2
6	GD350-110G-45-AS	110	201	215	2	–	–	–	–
6	GD350-110G-45-NS	110	201	215	2	–	–	–	–
6	GD350-110G-45-AS-B	110	201	215	2	–	–	–	–
6	GD350-110G-45-NS-B	110	201	215	2	–	–	–	–
