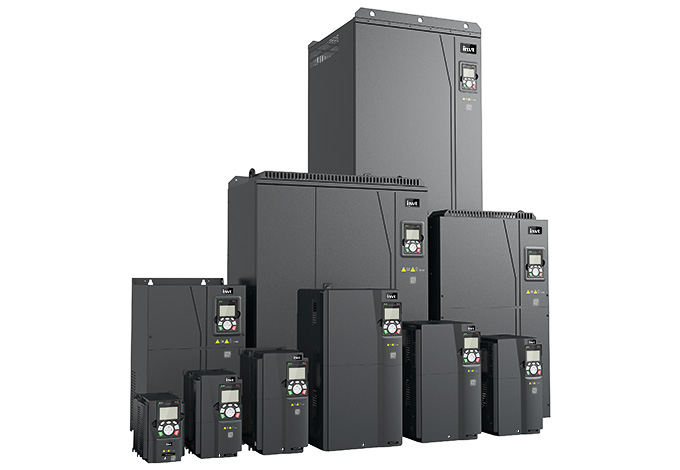

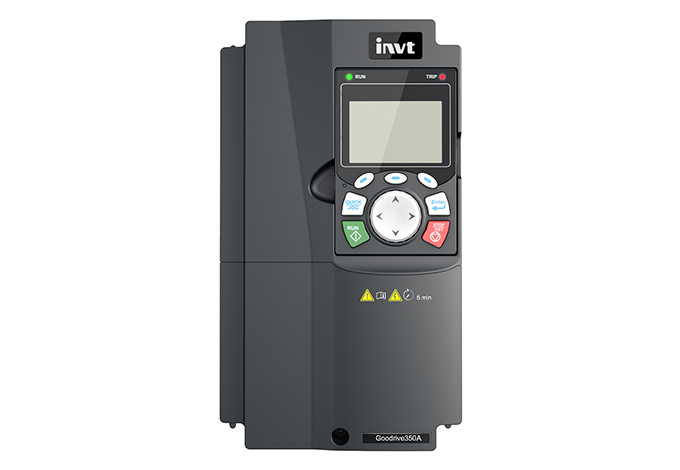

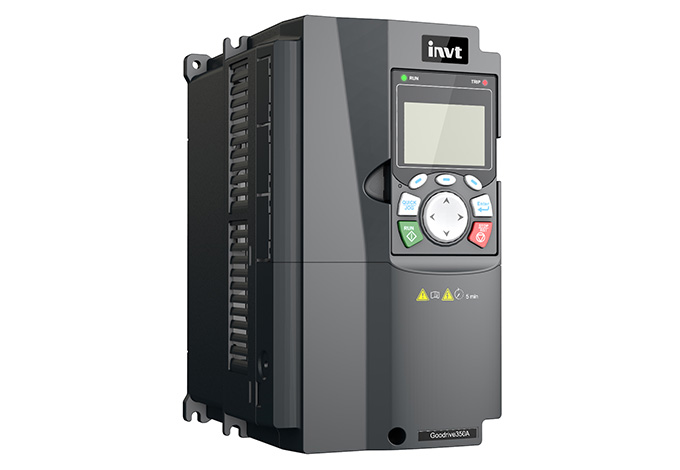

INVT GD350A Series VFD
INVT GD350 IP55 Series – High Performance Variable Frequency Drive.
GD350 IP55 is a multipurpose VFD designed for demanding industrial environments. The IP55 protection rating ensures reliable performance in dusty and outdoor installations.
Description
INVT GD350 IP55 Series – High Performance Variable Frequency Drive.
GD350A takes advantage of dedicated processor for motor control. It enhances scalability and usability with SVC, VC, STO, LCD keypad, etc. The unity of G/P models can accommodate most operational requirements. Besides, GD350A supports mobile APP operation and has secondary development function.
GD350A integrates versatile functions into drive, to meet various load and diversified needs.
Key Features:
• High-performance vector control
• IP55 protection for harsh environments
• Stable torque control
• Energy-saving operation
• Advanced motor protection
Applications:
• Outdoor pump systems
• Industrial machinery
• Heavy-duty automation systems
• Process control applications
| Model | Rated Power (kW) | Input (A) | Output (A) | Product Size (mm) | Package (mm) | Net (kg) | Gross (kg) |
|---|---|---|---|---|---|---|---|
| GD350A-1R5G/2R2P-4 | 1.5 / 2.2 | 5.0 / 5.8 | 3.7 / 5 | 126×186×185 | 290×210×265 | 2 | 3 |
| GD350A-2R2G/003P-4 | 2.2 / 3 | 5.8 / 11 | 5 / 7 | 126×186×185 | 290×210×265 | 2 | 3 |
| GD350A-004G/5R5P-4 | 4 / 5.5 | 13.5 / 19.5 | 9.5 / 12.5 | 126×186×201 | 290×210×265 | 2.5 | 3.5 |
| GD350A-5R5G/7R5P-4 | 5.5 / 7.5 | 19.5 / 23 | 14 / 17 | 146×256×192 | 343×230×270 | 3 | 4 |
| GD350A-7R5G/011P-4 | 7.5 / 11 | 25 / 30 | 18.5 / 23 | 146×256×192 | 343×230×270 | 3 | 4 |
| GD350A-011G/015P-4 | 11 / 15 | 32 / 40 | 25 / 32 | 170×320×220 | 430×275×325 | 6 | 7 |
| GD350A-015G/018P-4 | 15 / 18.5 | 40 / 45 | 32 / 38 | 170×320×220 | 430×275×325 | 6 | 7 |
| GD350A-018G/022P-4 | 18.5 / 22 | 45 / 51 | 38 / 45 | 200×340.6×208 | 490×315×315 | 8.5 | 10.5 |
| GD350A-022G/030P-4 | 22 / 30 | 51 / 64 | 45 / 60 | 200×340.6×208 | 490×315×315 | 8.5 | 10.5 |
| GD350A-030G/037P-4 | 30 / 37 | 64 / 80 | 60 / 75 | 250×400×223 | 580×395×360 | 16 | 17 |
| GD350A-037G/045P-4 | 37 / 45 | 80 / 98 | 75 / 92 | 250×400×223 | 580×395×360 | 16 | 17 |
| GD350A-045G/055P-4 | 45 / 55 | 98 / 128 | 92 / 115 | 282×560×258 | 680×425×380 | 25 | 29 |
| GD350A-055G/075P-4 | 55 / 75 | 128 / 139 | 115 / 150 | 282×560×258 | 680×425×380 | 25 | 29 |
| GD350A-075G/090P-4 | 75 / 90 | 139 / 168 | 150 / 170 | 338×554×330 | 675×470×575 | 41 | 52 |
| GD350A-090G/110P-4 | 90 / 110 | 168 / 201 | 180 / 215 | 338×554×330 | 675×470×575 | 41 | 52 |
| GD350A-110G/132P-4 | 110 / 132 | 201 / 265 | 215 / 260 | 500×870×360 | 971×631×565 | 85 | 110 |
| GD350A-132G/160P-4 | 132 / 160 | 265 / 310 | 260 / 305 | 500×870×360 | 971×631×565 | 85 | 110 |
| GD350A-160G/185P-4 | 160 / 185 | 310 / 345 | 305 / 340 | 500×870×360 | 971×631×565 | 85 | 110 |
| GD350A-185G/200P-4 | 185 / 200 | 345 / 385 | 340 / 380 | 500×870×360 | 971×631×565 | 85 | 110 |
| GD350A-200G/220P-4 | 200 / 220 | 385 / 430 | 380 / 425 | 680×960×380 | 1086×826×595 | 135 | 165 |
| GD350A-220G/250P-4 | 220 / 250 | 430 / 460 | 425 / 480 | 680×960×380 | 1086×826×595 | 135 | 165 |
| GD350A-250G/280P-4 | 250 / 280 | 460 / 500 | 480 / 530 | 680×960×380 | 1086×826×595 | 135 | 165 |
| GD350A-280G/315P-4 | 280 / 315 | 500 / 580 | 530 / 600 | 680×960×380 | 1086×826×595 | 135 | 165 |
| GD350A-315G/355P-4 | 315 / 355 | 580 / 625 | 600 / 650 | 680×960×380 | 1086×826×595 | 135 | 165 |
