TM700 Series High-performance PLC

Product Overview

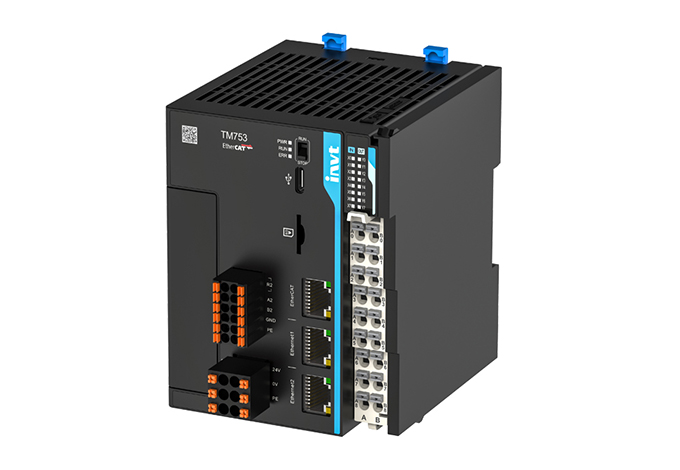

INVT TM700 Series High-performance PLC

The INVT TM700 Series is a high-performance programmable controller designed for applications with demanding motion-control requirements and complex industrial communication networks.

Advanced Motion Control

• 1ms at 16-axis EtherCAT bus motion control
• Supports multi-axis collaboration
• Eight integrated high-speed inputs
• Eight integrated high-speed outputs
• Encoder-input support
• Hardware-latch support
• High-speed comparison output
• Pulse-axis functionality

BufferMode

Supports BufferMode functionality for smoother motion transitions, helping reduce mechanical impact and improve machine productivity.

Electronic Cam and Gear Functions

• Electronic cam control
• Electronic gear control
• Advanced synchronized-motion applications

Interpolation

• Linear interpolation
• Arc interpolation
• Spiral interpolation

Axis Group Functions

Axis-group control and integrated kinematic models help support control of different robotic-arm and coordinated-motion architectures.

Industry Process Libraries

Industry-specific process libraries and instructions can reduce development difficulty and shorten machine-solution development cycles.

Industrial Networking

• EtherCAT
• Modbus TCP
• TCP/IP
• UDP
• EtherNet/IP
• Modbus RTU
• CANopen
• OPC UA
• Tag communication

Programming and Commissioning

• Variable-usage visibility
• Program optimization support
• Troubleshooting assistance
• Servo function-code read/write support
• VFD function-code read/write support
• Axis unit conversion tools
• Easy-to-understand homing configuration

Typical Applications

• Multi-axis machinery
• Robotics
• Labeling equipment
• Flying-trigger applications
• Packaging machinery
• Advanced production systems
• Intelligent manufacturing
