Mitsubishi AC Drives Products Range:

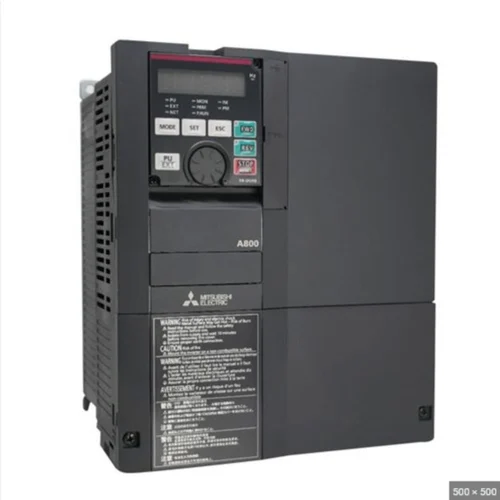

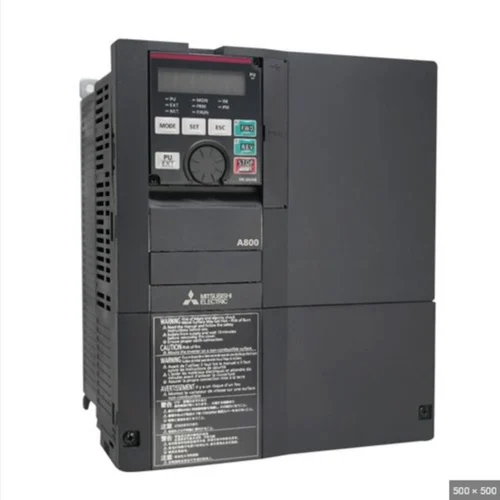

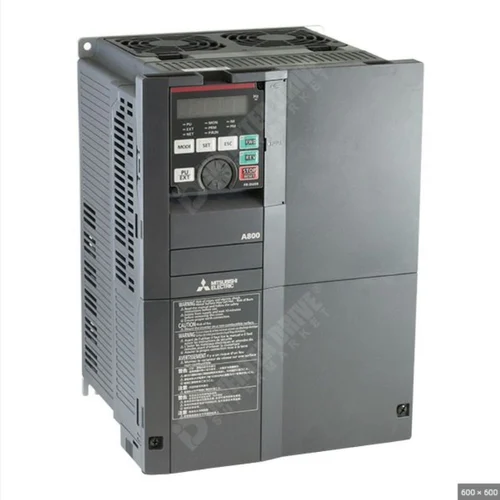

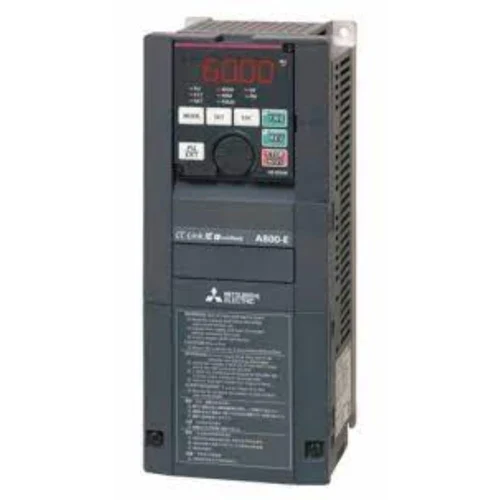

Mitsubishi FR-A800 VFD

(1 customer review)
Product Brochure    Product Manual
BrandMitsubishi
Model Name/NumberFR-A800 Series
Motor Power0.4 kW to 280 kW
Input Voltage400 V
Input Phase3 - Phase
Input Frequency50 to 60 Hz
Start Up TorqueHigh
Control ProcedureProgrammable
Warranty1 year

Mitsubishi FR-A800 Series is High performance and high quality new inverter of the highest level.With the enhanced drive performance and usability, the inverter is compliant with applicable safety standards.0.4KW to 355KW.

Models and Ratings:
  • FR-A840-00023-2-60  :  0.4 kw HD / 0.75 kw ND,
  • FR-A840-00038-2-60  :  0.75 kw HD / 1.5 kw ND,
  • FR-A840-00052-2-60  :  1.5 kw HD / 2.2 kw ND,
  • FR-A840-00083-2-60  :  2.2 kw HD / 3.7 kw ND,
  • FR-A840-00126-2-60  :  3.7 kw HD/ 5.5 kw ND,
  • FR-A840-00170-2-60  :  5.5 kw HD / 7.5 kw ND,
  • FR-A840-00250-2-60  :  7.5 KW HD / 11 kw ND,
  • FR-A840-00310-2-60  :  11 kw HD / 15 kw ND,
  • FR-A840-00380-2-60  :  15 kw HD / 18.5 kw ND,
  • FR-A840-00470-2-60  :  18.5 kw HD / 22 kw ND,
  • FR-A840-00620-2-60  :  22 kw HD / 30 kw ND,
  • FR-A840-00770-2-60  :  30 kw HD / 37 kw ND,
  • FR-A840-00930-2-60  :  37 kw HD / 45 kw ND,
  • FR-A840-01160-2-60  :  45 kw HD / 50 kw ND,
  • FR-A840-01800-2-60  :  55 kw HD / 75/90 kw ND,
  • FR-A840-02160-2-60  :  75 kw HD / 110 kw ND,
  • FR-A840-02600-2-60  :  90 kw HD / 132 kw ND,
  • FR-A840-03250-2-60  :  110 kw HD / 160 kw ND,
  • FR-A840-03610-2-60  :  132 kw HD / 185 kw ND,
  • FR-A840-04320-2-60 :  160 kw HD / 220 kw ND,
  • FR-A840-04810-2-60  :  185 kw HD / 250 kw ND,
  • FR-A840-05470-2-60  :  220 kw HD / 280 kw ND,
  • FR-A840-06100-2-60  :  250 kw HD / 315 kw ND,
  • FR-A840-6830-2-60 :  280 kw HD / 355 kw ND,
Read more

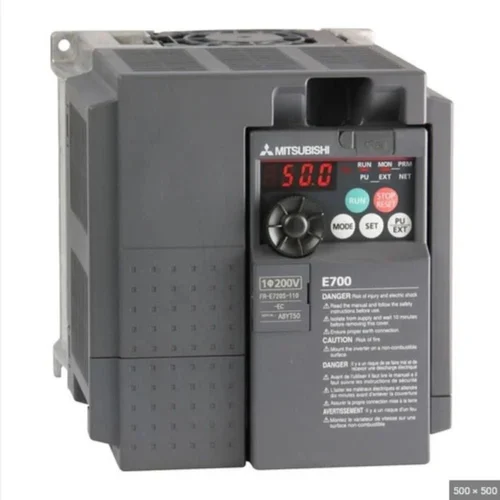

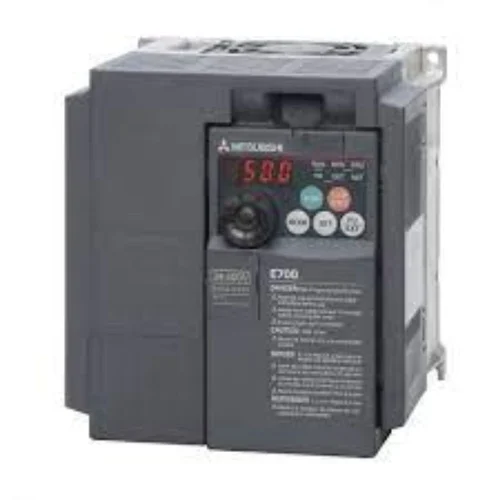

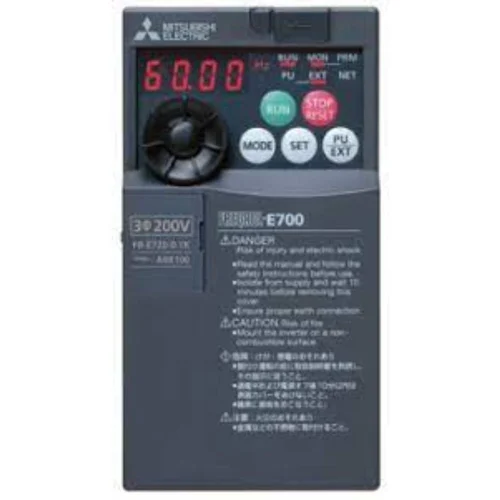

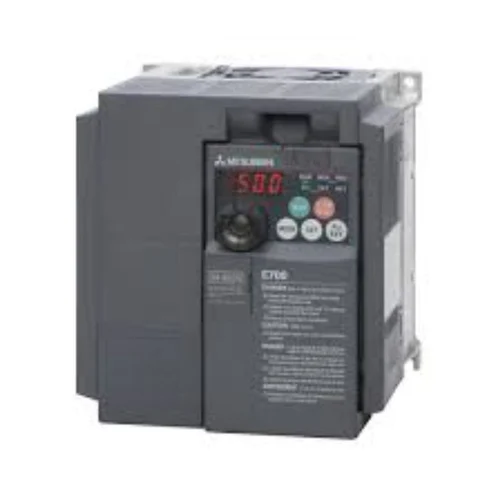

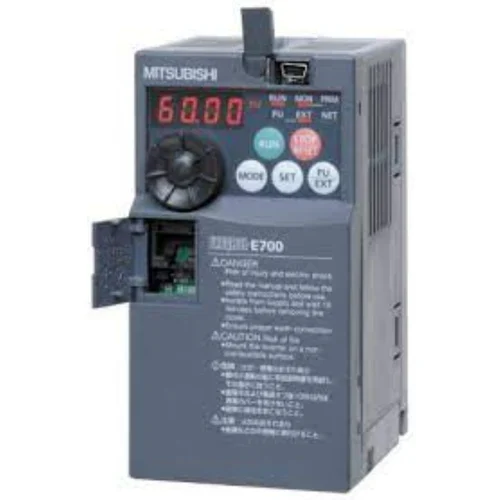

Mitsubishi FR-E700 VFD

(1 customer review)
Product Brochure    Product Manual
BrandMitsubishi
Model Name/NumberFR-E700 Series
Motor Power0.4 kW to 15 kW
Input Voltage400 V
Input Phase3 - Phase
Output Current1.6-30 A
Control ProcedureProgrammable
Warranty1 Year

Mitsubishi FR-E700 Series VFD: By the advancement of General-purpose magnetic flux vector control to Advanced magnetic flux vector control, top level of driving performance became possible.

V/F control and General-purpose magnetic flux vector control operations are available. High torque 200%/0.5Hz is realized by Advanced magnetic flux vector control (3.7K or less)For the 5.5K to 15K, 150%/0.5Hz torque is realized.
Ratings: 0.4KW to 15KW.
Models and Ratings:
  • FR-E740-016  : Mitsubishi FR-E740:  0,4 KW/0,5HP O/P Current : 1,6 Amps,
  • FR-E740-026  : Mitsubishi FR-E740:  0,75 KW/1HP O/P Current : 2,6 Amps,
  • FR-E740-040  : Mitsubishi FR-E740:  1,5 KW/2HP O/P Current : 4 Amps,
  • FR-E740-060  : Mitsubishi FR-E740:  2,2 KW/3HP O/P Current : 6 Amps,
  • FR-E740-095  : Mitsubishi FR-E740:  3,7 KW/5HP O/P Current : 9,5 Amps,
  • FR-E740-120 : Mitsubishi FR-E740:  5,5 KW/7,5HP O/P Current : 12 Amps,
  • FR-E740-170 : Mitsubishi FR-E740:  7,5 KW/10HP O/P Current : 17 Amps,
  • FR-E740-230 : Mitsubishi FR-E740:  11 KW/15HP O/P Current : 23 Amps,
  • FR-E740-300 : Mitsubishi FR-E740:  15 KW/20HP O/P Current : 30 Amps,
Read more

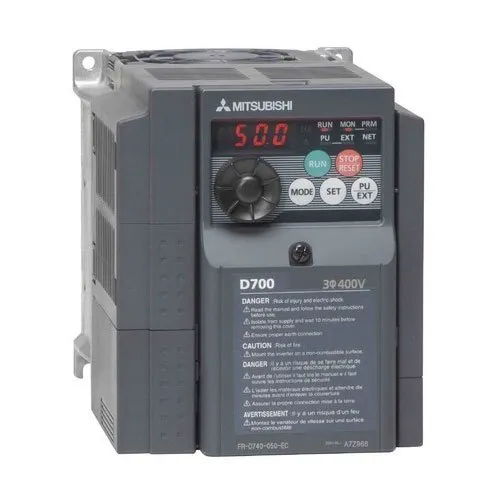

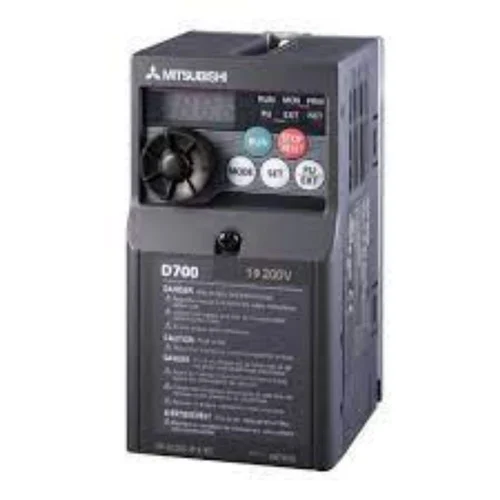

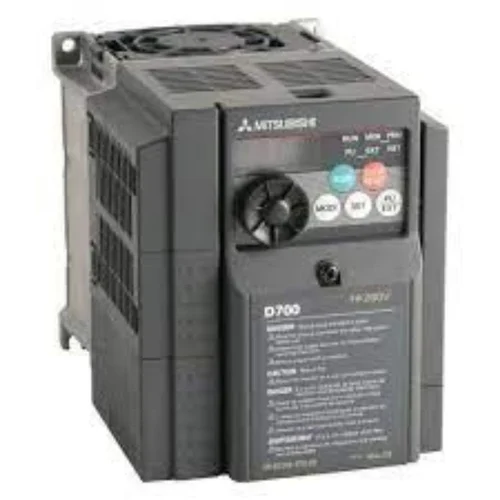

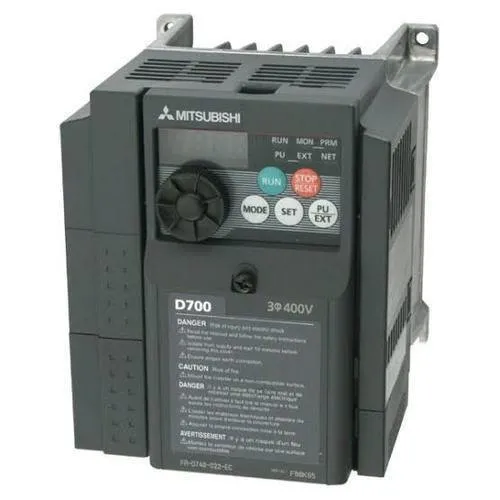

Mitsubishi FR-D700 VFD

(1 customer review)
Product Brochure    Product Manual
BrandMitsubishi
Model Name/NumberFR-D700 Series
Motor Power0.4 kW to 7.5 kW
Input Voltage200 V and 400 V
Input Phase3 - Phase
ControlProgrammable
Warranty1 Year
ApplicationIndustrial
UsageSpeed Control

Mitsubishi FR-D700 Series VFD: Improved reliability and easy maintenance.

Spring clamp terminals provide high reliability and easy wiring.The inverter with the safety stop function can comply with the safety standards without incurring too much expenses.
Ratings: 0.4KW to 7.5KW.
Models and Ratings:
FR-D720S-025 : Mitsubishi FR-D720 Series 0.4kw/0.5hp, single phase VFD,
FR-D720S-042 : Mitsubishi FR-D720 Series 0.75 kw/1hp, single phase VFD,
FR-D720S-070 : Mitsubishi FR-D720 Series 1.5 kw/2hp, single phase VFD,
FR-D720S-100 : Mitsubishi FR-D720 Series 2.2kw/3hp, single phase VFD,
FR-D740-012 : Mitsubishi FR-D740 series 0.4kw/0.5hp, 3 phase VFD,
FR-D740-022 : Mitsubishi FR-D740 series 0.75kw/1hp, 3 phase VFD,
FR-D740-036 : Mitsubishi FR-D740 series 1.5kw/2hp, 3 phase VFD,
FR-D740-050 : Mitsubishi FR-D740 series 2.2kw/3hp, 3 phase VFD,
FR-D740-080 : Mitsubishi FR-D740 Series 3.7kw/5hp, 3 phase VFD,
FR-D740-120 : Mitsubishi FR-D740 series 5.5kw/7.5hp, 3 phase VFD,
FR-D740-160 : Mitsubishi FR-D740 series 7.5kw/10hp, 3 phase  VFD,
Read more
