Vertex PID Temperature Controller - VT4926
| Model No. | VT4926 |
| Size | 48 x 96 mm |
| Control Type | PID/On-Off |
| Input Type | Voltage (mV), Thermocouple, RTD, Current (mA) |
| Control output Type | Analog (mA/mV), Relay/SSR |
| Accuracy | +/- 0.1% of the specified range |
| Resolution | 1 Degree C/ 0.1 Degree C |
| Voltage | 100-240 VAC |
| Frequency | 50/60 Hz |
| Brand | Vertex |
Vertex PID Controllers -
Microprocessor based auto-tuned PID Controller suitable for universal I/P (selectable) with Two control O/P and Two Alarm relay O/P. Size :48x96x110mm.

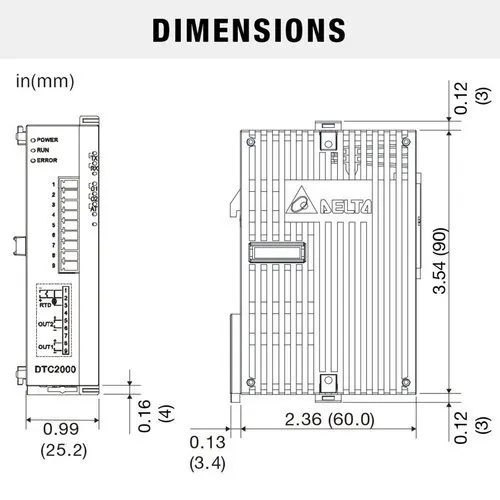

Delta DTC 1000/2000 Temperature Controller
| Brand | Delta |
| Model No. | DTC2000R/V/C/L |
| Size | 48 x 48 mm |
| Control Type | PID/On-Off |
| Input Type | Thermocouple, Voltage (mV), RTD, Current (mA) |
| Control output Type | Relay/SSR, Relay |
DTC features a modular and wire-saving structure, and is able to monitor many temperature points by parallel and modular extension.
Delta DTB Series Temperature Controllers
| Size | 48 x 48 mm |
| Control Type | PID/On-Off |
| Model No. | DTB4848 |
| Input Type | Voltage (mV), Thermocouple, RTD, Current (mA) |
| Control output Type | Relay, Analog (mA/mV) |
| Brand | Delta |
| Voltage | 250 VAC |
| Frequency | 50/60 Hz |

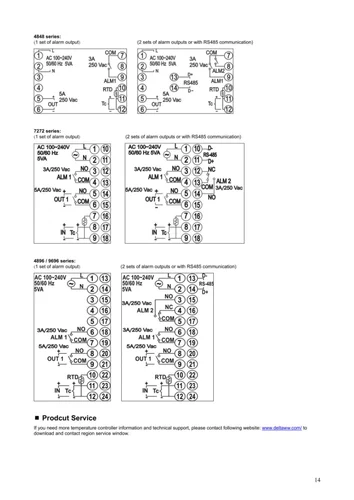

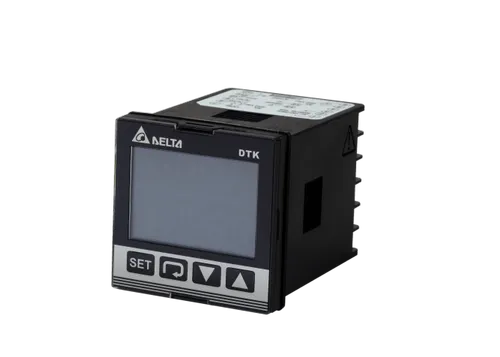

Delta DTK Series Temperature Controller
| Brand | Delta |
| Model No. | DTK4848R01/V01/C01 |
| Size | 48 x 48 mm |
| Control Type | On-Off |
| Input Type | Thermocouple, RTD, Voltage (mV), Current (mA) |
| Control output Type | Relay/SSR |
| Temperature Range | 0-400 |
| Resolution | LCD display. PV : red, SV : green |
| Display Type | 1 digit after decimal point, or no decimal point |
| Mounting Type | Panel |
| Voltage | 110-230 VAC |
| Frequency | 50/60 Hz |
Ecosys Deals in Delta Temp Controllers: DTK Series, DT3 Series, DTA Series, DTB Series, DTC Series, DTV Series, DTE Series
Delta's DT series temperature controller has fast output response, accurate PID parameter auto-tuning, supports the Modbus communication protocol and is built-in with various output types, allowing different systems to reach a stable control status very quickly. In addition, all series comply with international installation dimensions as well as CE and UL international safety approvals.
DTK4848R01

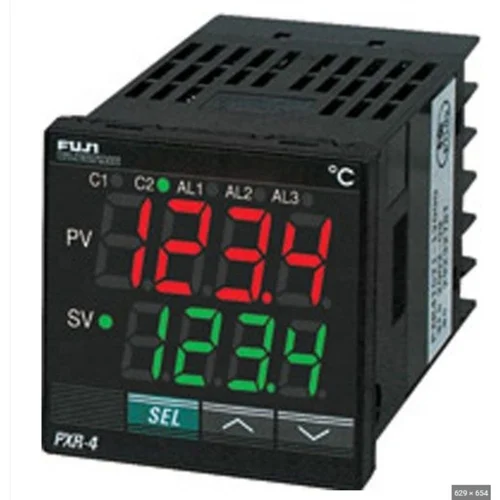

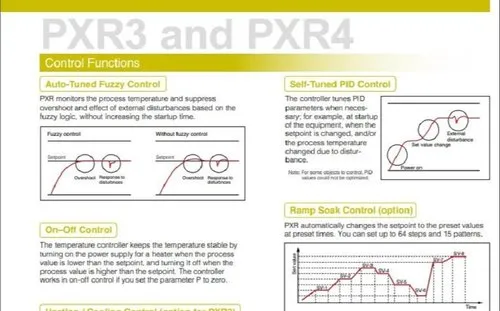

Fuji Temperature Controllers
| Display Type | 4 Digit/7 Segment |
| Size | 48 x 48 mm |
| Frequency | 50/60 Hz |
| Mounting Type | Panel |
| Control Type | PID |
| Accuracy | 0.3% FS |
| Voltage | 100-240 VAC |
| Brand | Fuji |
| Input Type | RTD, Voltage (mV), Thermocouple, Current (mA) |
| Model No. | PXR4 |
| Control output Type | Relay/SSR, Analog (mA/mV) |
| Usage | Industrial process control |
Ecosys provides Temperature Controllers Of Various Brands like Vertex, Autonics,Selec etc. , which are used in wide variety of industries, and is the starting and important tools for the controlling of the temperature to get desired results in various industries.
