Schneider AC Drives Products Range:

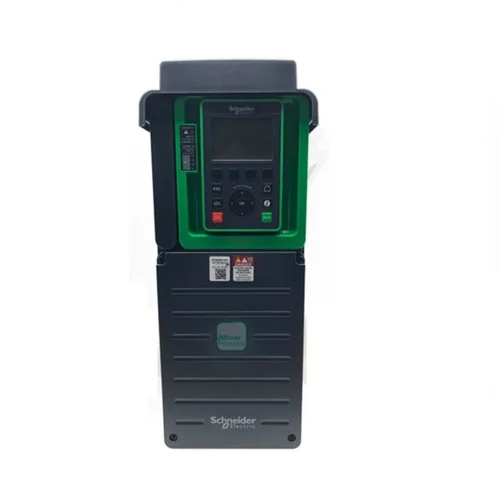

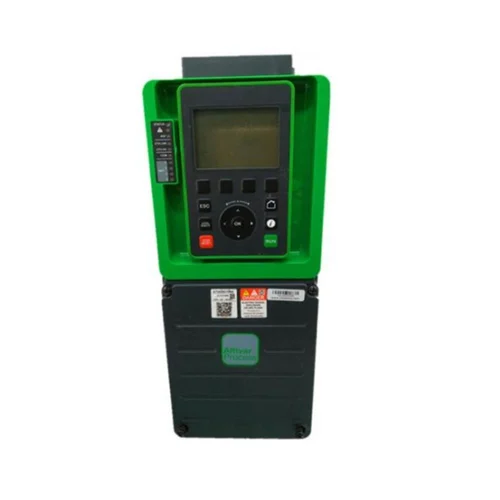

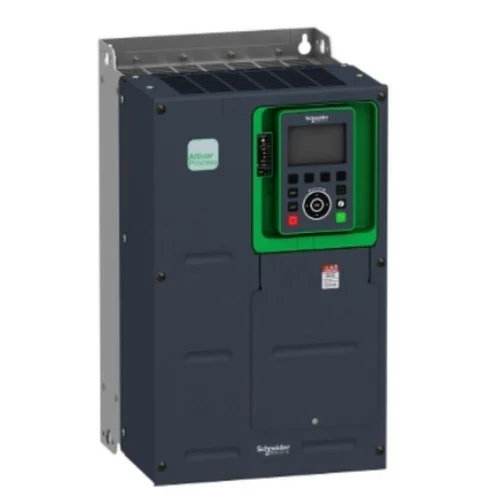

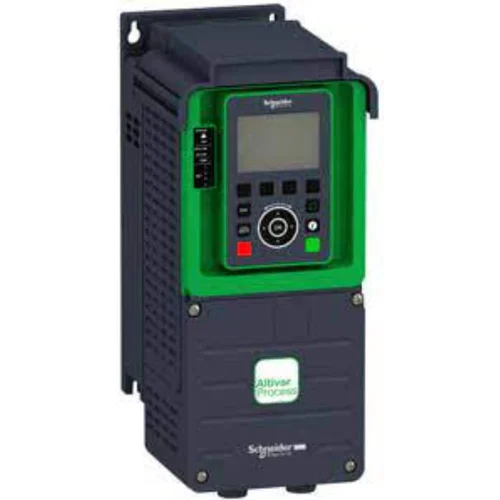

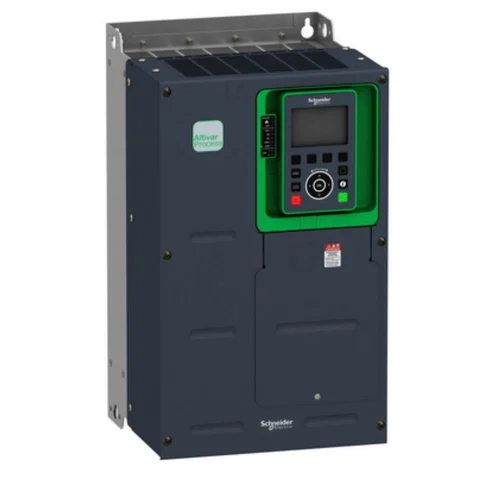

Schneider VFD ATV630
| Brand | Schneider |
| Model Name/Number | ATV630 |
| Motor Power | 0.75 kW to 315 kW |
| Input Voltage | 380-480 V |
| Input Phase | 3 - Phase |
| Input Frequency | 50-60 Hz |
| Warranty | 1 year |
Schneider Altivar Process ATV600, Schneider ATV600, Schneider ATV630:Variable speed drive for fluid management from 0.75kW to 800kW:Variable Speed Drive with embedded Services dedicated to process Industry and Utilities for 3 phases synchronous,asynchronous and special motors from 0,75kW to 1,5MW.
ATV630 - Altivar Process ATV630 : Variable Speed IIOT Drive dedicated to process Industry and Utilities (Pump & Fan) from 0.75 kW to 315 kW.
Three phase-Supply Voltage:380…480V (IP21):
Model and Ratings: Normal Duty:
- ATV630U07N4 - 0.75kw,
- ATV630U15N4 - 1.5kw,
- ATV630U22N4 - 2.2kw,
- ATV630U30N4 - 3kw,
- ATV630U40N4 - 4kw,
- ATV630U55N4 - 5.5kw,
- ATV630U75N4 - 7.5kw,
- ATV630D11N4 - 11kw,
- ATV630D15N4 - 15kw,
- ATV630D18N4 - 18.5kw,
- ATV630D22N4 - 22kw,
- ATV630D30N4 - 30kw,
- ATV630D37N4 - 37kw,
- ATV630D45N4 - 45kw,
- ATV630D55N4 - 55kw,
- ATV630D75N4 - 75kw,
- ATV630D90N4 - 90kw,
- ATV630C11N4 - 110kw,
- ATV630C13N4 - 132kw,
- ATV630C16N4 - 160kw,
- ATV630C22N4 - 220kw,
- ATV630C25N4 - 250kw,
- ATV630C31N4 - 315kw,
Schneider VFD ATV12
| Brand | Schneider |
| Model Name/Number | ATV12 |
| Motor Power | 0.18 kW to 4 kW |
| Input Voltage | 200-240 V |
| Input Phase | 3 - Phase |
| Input Frequency | 50-60 Hz |
| Warranty | 1 year |
Schneider Altivar 12, Schneider ATV12, Drives for simple machines 0.18 to 4 kW, Variable speed drives for small machines with three-phase 240 V 0.18 to 4 kW asynchronous motor.Small: easily integrated in any machine.
Single Phase 230VAC IN, Three Phase 230VAC OUT:
Models and Ratings:
- ATV12H018M2 - 0.25hp,
- ATV12H037M2 - 0.5hp,
- ATV12H055M2 - 0.75hp,
- ATV12H075M2 - 1hp,
- ATV12HU15M2 - 2hp,
- ATV12HU22M2 - 3hp,

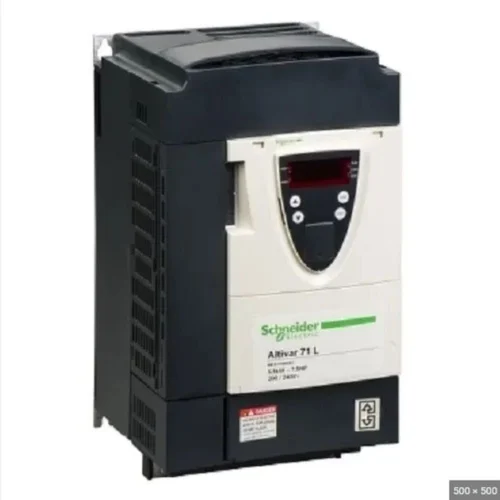

Schneider VFD ATV71
| Brand | Schneider |
| Model Name/Number | ATV71 |
| Motor Power | 0.37 kW to 500 kW |
| Input Voltage | 415 V |
| Input Phase | 3 - Phase |
| Input Frequency | 50-60 Hz |
| Warranty | 1 year |

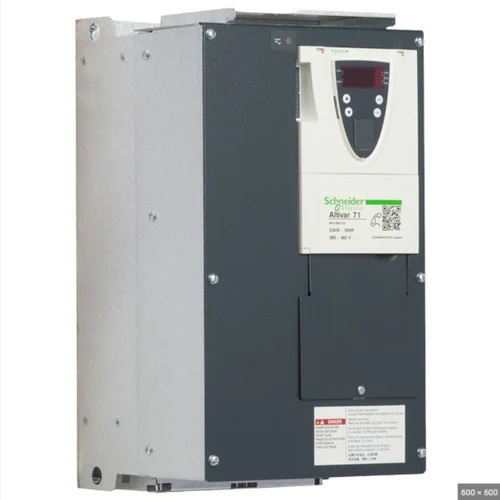

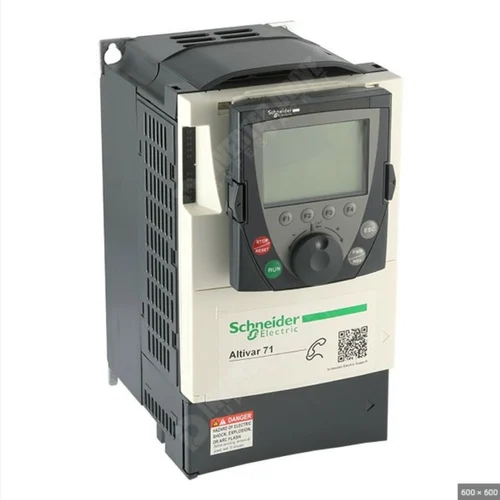

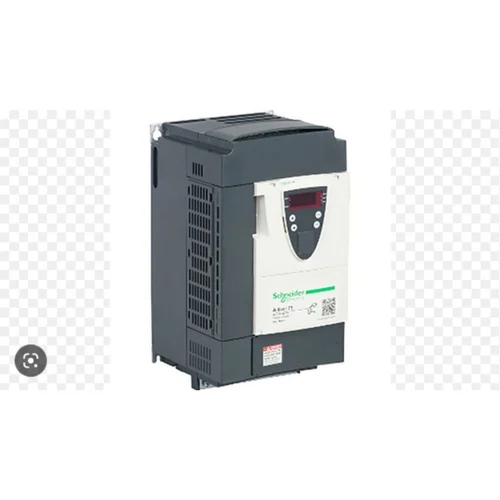

Schneider Altivar 71, Schneider ATV71:Drives for complex applications. Frequency inverters for 3-phase
synchronous and asynchronous motors from 0.37 to 630 kW.
Three phase-Supply Voltage:380…480V:
Model and Ratings:
- ATV71H075N4 - 0.75kw,
- ATV71HU15N4 - 1.5kw,
- ATV71HU22N4 - 2.2kw,
- ATV71HU30N4 - 3kw,
- ATV71HU40N4 - 4kw,
- ATV71HU55N4 - 5.5kw,
- ATV71HU75N4 - 7.5kw,
- ATV71HD11N4 - 11kw,
- ATV71HD15N4 - 15kw,
- ATV71HD18N4 - 18.5kw,
- ATV71HD22N4 - 22kw,
- ATV71HD30N4 - 30kw,
- ATV71HD37N4 - 37kw,
- ATV71HD45N4 - 45kw,
- ATV71HD55N4 - 55kw,
- ATV71HD75N4 - 75kw,
- ATV71HD90N4 - 90kw,
- ATV71HC11N4 - 110kw,
- ATV71HC13N4 - 132kw,
- ATV71HC16N4 - 160kw,
- ATV71HC20N4 - 200kw,
- ATV71HC25N4 - 250kw,
- ATV71HC31N4 - 315kw,
- ATV71HC40N4 - 400kw,
- ATV71HC50N4 - 500kw,
Schneider VFD ATV212
| Brand | Schneider |
| Model Name/Number | ATV212 |
| Motor Power | 0.75 kW to 75 kW |
| Input Voltage | 380-480 V |
| Input Phase | 3 - Phase |
| Input Frequency | 50-60 Hz |
| Warranty | 1 year |

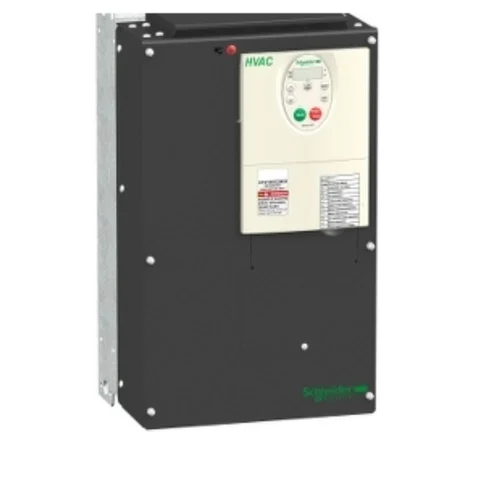

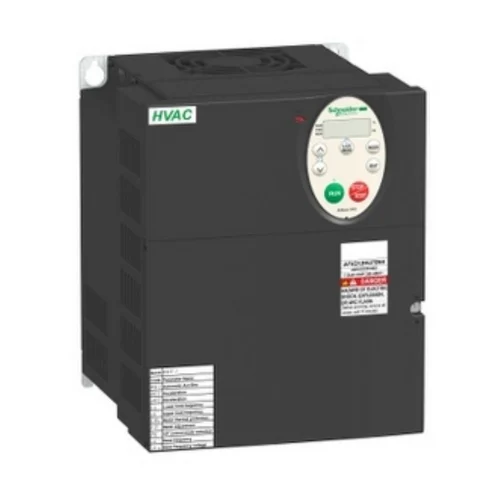

Schneider Altivar 212, Schneider ATV212:Dedicated HVAC drives for 0.75 to 75 kW motorsOrientated towards
performance, intelligence and building protection.
Three phase-Supply Voltage:380…480V:
- ATV212H075N4 - 0.75kw,
- ATV212HU15N4 - 1.5kw,
- ATV212HU22N4 - 2.2kw,
- ATV212HU30N4 - 3kw,
- ATV212HU40N4 - 4kw,
- ATV212HU55N4 - 5.5kw,
- ATV212HU75N4 - 7.5kw,
- ATV212HD11N4 - 11kw,
- ATV212HD15N4 - 15kw,
- ATV212HD18N4 - 18.5kw,
- ATV212HD22N4 - 22kw,
- ATV212HD30N4 - 30kw,
- ATV212HD37N4 - 37kw,
- ATV212HD45N4 - 45kw,
- ATV212HD55N4 - 55kw,
- ATV212HD75N4 - 75kw,

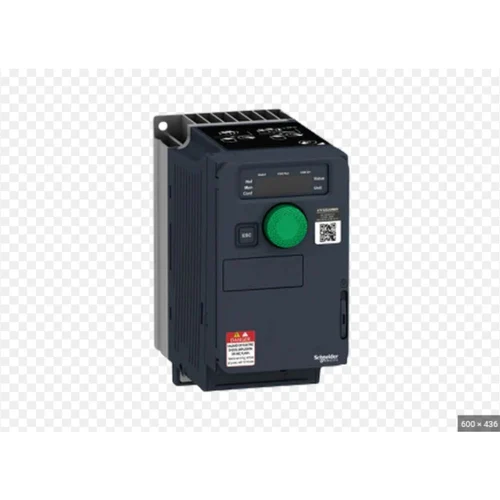

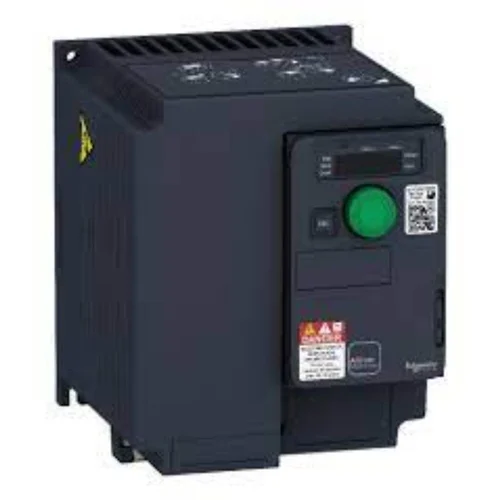

Schneider Altivar ATV320 AC Drive, 0.75 kW to 355 kW, 3 Phase
| Brand | Schneider |
| Model Name/Number | Altivar ATV320 |
| Motor Power | 0.75 kW to 355 kW |
| Input Voltage | 400-480 V |
| Input Phase | 3 - Phase |
| Input Frequency | 50-60 Hz |
| Warranty | 1 year |

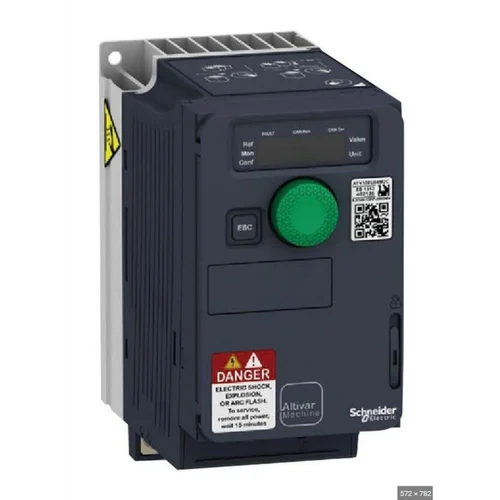

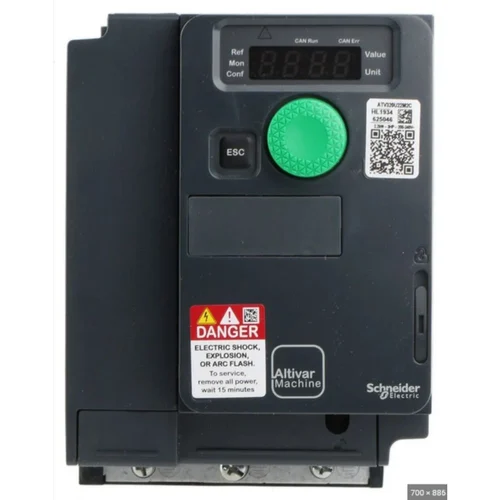

Altivar Machine ATV320, a variable speed drive designed for Original Equipment Manufacturers (OEMs) that meets
simple and advanced application requirements for 3 Phase synchronous and asynchronous motors from 0.18 to 15 kW
(0.25 to 20 Hp).
Features and Benefits:
The Altivar Machine ATV320 matches a variety of machine throughput
requirements with the following features:
Open-loop motor control combined with simplicity for asynchronous and synchronous motors, even at low speed and dynamic accuracy for start/stop applications,
Advanced connectivity with automation architectures such as CANopen, EtherNet/IP - Modbus TCP, EtherCAT, Profibus, Profinet, DeviceNet.
Application specific functions and ATVLogic bring the application expertise and flexibility into the machines.

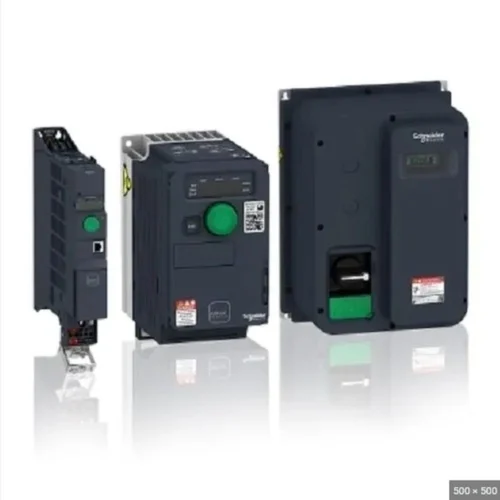

Two form factors. book and compact
Reliably accurate motor control
Robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards
Comprehensive embedded safety
Schneider Altivar Machine ATV320, Schneider ATV320:Variable speed drives for simple and advanced
machinesAltivar Machine ATV320, a variable speed drive designed for Original Equipment Manufacturers (OEMs) that
meets simple and advanced application requirements for 3 Phase synchronous and asynchronous motors from 0.18 to
15 kW (0.25 to 20 Hp).
Models and Ratings:Single phase-Supply Voltage: 200…240V:
ATV320U02M2C - 0.25hp,
ATV320U04M2C - 0.5hp,
ATV320U06M2C - 0.75hp,
ATV320U07M2C - 1hp,
ATV320U11M2C - 1.5hp,
ATV320U15M2C - 2hp,
ATV320U22M2C - 3hp,
Three phase-Supply Voltage: 380…500V (COMPACT)
ATV320U04N4C - 0.5hp,
ATV320U06N4C - 0.75hp,
ATV320U07N4C - 1hp,
ATV320U11N4C - 1.5hp,
ATV320U15N4C - 2hp,
ATV320U22N4C - 3hp,
ATV320U30N4C - 4hp,
ATV320U40N4C - 5hp,
ATV320U55N4C - 7.5hp,
ATV320U75N4C - 10hp,
ATV320D11N4C - 15hp,
ATV320D15N4C - 20hp,
Three phase-Supply Voltage: 380…500V (BOOK)
ATV320U04N4B - 0.5hp,
ATV320U06N4B - 0.75hp,
ATV320U07N4B - 1hp,
ATV320U11N4B - 1.5hp,
ATV320U15N4B - 2hp,
ATV320U22N4B - 3hp,
ATV320U30N4B - 4hp,
ATV320U40N4B - 5hp,
ATV320U55N4B - 7.5hp,
ATV320U75N4B - 10hp,
ATV320D11N4B - 15hp,
ATV320D15N4B - 20hp,
