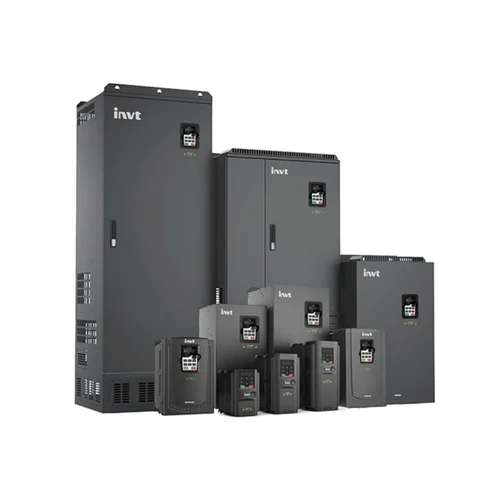

Models and Ratings:

• GD200A-0R75G-4 : 0.75KW,
• GD200A-1R5G-4 : 1.5KW,
• GD200A-2R2G-4 : 2.2KW,
• GD200A-004G/5R5P-4 : 4/5.5KW,
• GD200A-5R5G/7R5P-4 : 5.5/7.5KW,
• GD200A-7R5G/011P-4 : 7.5/11KW,
• GD200A-011G/015P-4 : 11/15'KW,
• GD200A-015G/018P-4 : 15/18.5KW,
• GD200A-018G/022P-4 : 18.5/22KW,
• GD200A-022G/030P-4 : 22/30KW,
• GD200A-030G/037P-4 : 30/37KW,
• GD200A-037G/045P-4 : 37/45KW,
• GD200A-045G/055P-4 : 45/55KW,
• GD200A-055G/075P-4 : 55/75KW,
• GD200A-075G/090P-4 : 75/90KW,
• GD200A-090G/110P-4 : 90/110KW,
• GD200A-110G/132P-4 : 110/132KW,
• GD200A-132G/160P-4 : 132/160KW,
• GD200A-160G/200P-4 : 160/200KW,
• GD200A-200G/220P-4 : 200/220KW,
• GD200A-220G/250P-4 : 220/250KW,
• GD200A-250G/280P-4 : 250/280KW,
• GD200A-280G/315P-4 : 280/315KW,
• GD200A-315G/350P-4 : 315/350KW,
• GD200A-350G/400P-4 : 350/400KW,
• GD200A-400G-4 400 : 400KW,
• GD200A-500G-4 500 : 500KW,

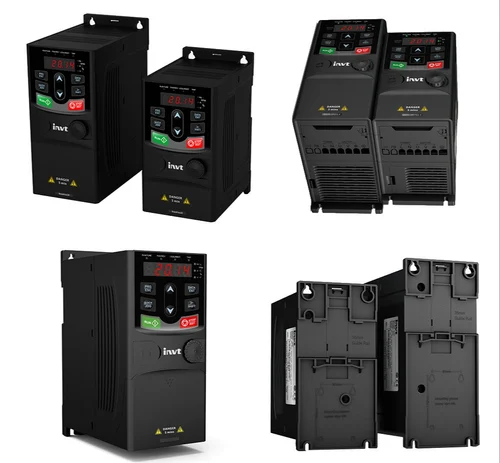

Models and Ratings:

• GD20-0R4G-S2 : 0.4KW Single Phase,
• GD20-0R7G-S2 : 0.75KW Single Phase,
• GD20-1R5G-S2 : 1.5KW Single Phase,
• GD20-2R2G-S2 : 2.2KW Single Phase,
• GD20-0R7G-4 : 0.75KW Three Phase,
• GD20-1R5G-4 : 1.5KW Three Phase,
• GD20-2R2G-4 : 2.2KW Three Phase,
• GD20-004G-4 : 4KW Three Phase,
• GD20-5R5G-4 : 5.5KW Three Phase,
• GD20-7R5G-4 : 7.5KW Three Phase,
• GD20-011G-4 : 11KW Three Phase,
• GD20-015G-4 : 15KW Three Phase,
• GD20-018G-4 : 18.5KW Three Phase,

GD350 IP55 also incorporates features such as ease of use, excellent performance, high scalability and wide usage. At the same time, an integrated AC switch also provides convenience and security for machine control and debugging. It widely used in aquaculture farm, water treatment, fan, etc.

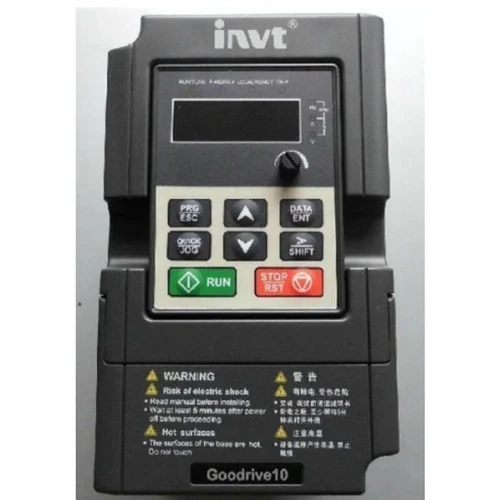

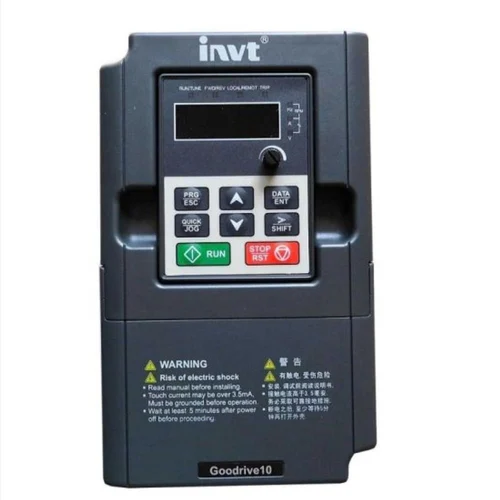

Models and Ratings:

• GD10-0R2G-S2-B : 0.2KW Single Phase,
• GD10-0R4G-S2-B : 0.4KW Single Phase,
• GD10-0R7G-S2-B : 0.75KW Single Phase,
• GD10-1R5G-S2-B : 1.5KW Single Phase,
• GD10-2R2G-S2-B : 2.2KW Single Phase,
• GD10-0R7G-4-B  : 0.75KW Three Phase,
• GD10-1R5G-4-B  : 1.5KW Three Phase,
• GD10-2R2G-4-B  : 2.2KW Three Phase,

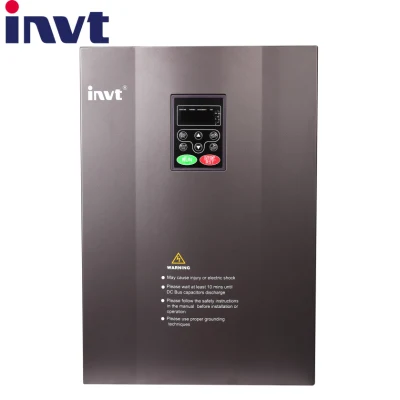

Brief Introduction CHF100A series high performance universal inverter is the enhanced edition of CHF series, which is combined the advantage of CHF100 & CHE100. It adopts the DSP control system supplies sensorless vector control and V/f control. The performance is more perfect and stable. It is widely applied in Pump & Fan and some applications with high speed control accuracy, rapid torque response and high performance at low frequency. Features Three control modes: Without PG vector (SVC); V/F control; And torque control. Starting torque: Without PG vector control: 0.5Hz/150% (SVC); 18.5kW-90kW inverter built-in DC reactor to improve input power factor and increaseoverall efficiency and stability; Internal brake unit with every specification 0.75-15kW, so that the braking resister can be connected directlyfor a quick stop; 16-steps simple PLC, multi-speed control, and PID control; Supporting multi-frequency installation methods: Digital setup, analog quantity setup, PID setup, and communication setup; Supports starting and stopping DC brake; The input and output terminals may be freely programmed, so users may combine a variety of operating modes as needed; Equipped with jump frequency control which prevents mechanical resonance and makes the system more stable and reliable; Equipped with instantaneous power failure non-outage capability; Equipped with sleep-wake delay installation capability; Equipped with over-torque detection; Variety of maximum frequency setting source options; Equipped with a bidirectional shift key, which enables users to use the shift key to view real-time parameters; Rotation speed tracking re-start function: Allowing rotating machinery to be started smoothly and without any shocks; QUICK/JOG function: Users can freely define multi-functional shortcut keys, and by setting up these parameters users can quickly browse different function codes of modified which are different from default values; Equipped with automatic voltage adjustment function, which can effectively resolve problems with high-power motors low-frequency vibrations; Equipped with vibration suppression; Offering a variety of fault protection functions: Over-current, over-voltage, under-voltage, over-temperature, phase-failure, overload, etc; Low voltage inverter. Specifications Applications Belt-type conveyors, hoists, winches, emulsion pumps, electric submersible pumps, mining fans, water pumps, etc. Solution CHF100A series inverter used on the centre air conditioner The difference of effluent temperature and backwater temperature of the water-cycling system in the central air-conditioning indicates the heat exchanger of the whole system needed, so, we can control the low of water-cycling to control the heat exchange speed based on the difference, it is the first choice control mode for energy saving.

The VFD has integrated rich lifting industry delicated control functions and STO fucntions, and can be widely applied to various cranes in different fields such as ports, factories, construction sites, and mining, with excellent control performance, comprehensive safety protection functions, and flexible expansion capability. Power range: AC 380V (-15%)–440V (+10%) 1.5–500kW AC 520V (-15%)–690V (+10%) 22–630kW

It can realize dual inverter integrated control of the air compressor. This system solution is a perfect substitute for air compressor electrical cabinet but added with various additional powerful functions.

Suitable for industries such as machine tools, textile machinery, packaging machinery, paper making, tension control, and other industrial applications that require high performance closed loop vector control.

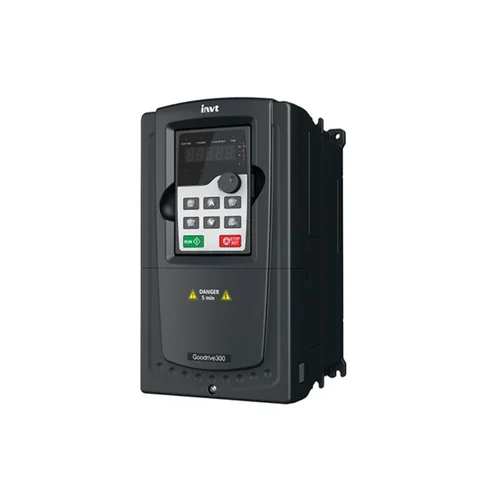

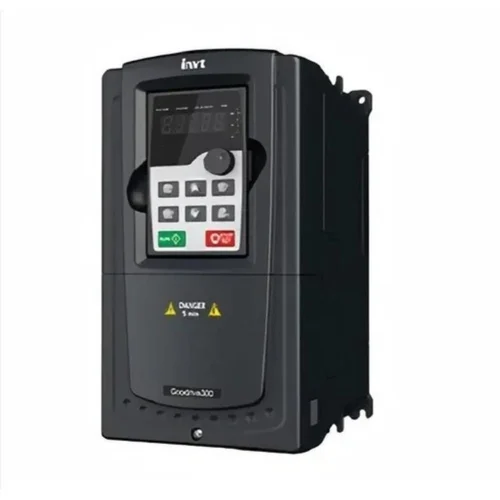

Models and Ratings:

• GD300-18-004G-4 - 4kw,
• GD300-18-5R5G-4 - 5.5kw,
• GD300-18-7R5G-4 - 7.5kw,
• GD300L-18-011G-4 - 11kw,
• GD300L-18-015G-4 - 15kw,
• GD300L-18-018G-4 - 18.5kw

• MAX. IO points: 128
• Standard 3 isolated serial ports:1 RS232/2 RS485
• Support 6 high speed pulse input
• Support 3x100kHz high speed pulse output
• Program capacity: 16K steps
• Program power-off permanent storage
• Equipped with rechargeable lithium battery, real-time clock saved for 3 years.
• Max. 7 extension module
• The main module is divided into two kinds: DC power supply（19-30VDC）and AC power supply（85-264VAC）
